Oceanic 58

Discussion in 'Tank Journals' started by alvin chiao, Feb 7, 2017.

  1. Coral reefer

    Coral reefer President

    Joined:
    Mar 26, 2010
    Messages:
    7,669
    Likes Received:
    1,144
    Where is that going? Garage? Maybe. Gonna be kinda fugly in a living room type situation I think.

    Newjack likes this.
  2. Newjack

    Newjack Supporting Member

    Joined:
    May 27, 2015
    Messages:
    617
    Likes Received:
    211
    i like that word "fugly" :p

  3. alvin chiao

    alvin chiao Guest

    Joined:
    Mar 9, 2016
    Messages:
    41
    Likes Received:
    4
    [​IMG]


    just finished the stand. pretty happy with how it turned out. just need to drill a box on top for the overflow. dont think im going to paint or seal this. on to plumbing next!

    quick question, how would i go about sealing the drains in the tank if i want to fill it up with vinegar so that i can clean the overflow box?

    edit: here is the stand. i actually might consider painting it.

    <a href="http://imgur.com/CBvDZYM"><img src="http://i.imgur.com/CBvDZYM.jpg" title="source: imgur.com" /></a>

    Last edited: Feb 12, 2017
    Coral reefer likes this.
  4. xcaret

    xcaret Supporting Member

    Joined:
    Feb 21, 2008
    Messages:
    4,254
    Likes Received:
    297
    Use paper towels soaked in vinegar and place them over the areas you want.

    Coral reefer likes this.
  5. Vincerama2

    Vincerama2 Evil Overlord

    Joined:
    Nov 22, 2005
    Messages:
    1,823
    Likes Received:
    82
    There is a guy on the Bay Area Reefers facebook page that is offering weldling services at a discount for BAR members. I mentioned that if I were to do it over again, which will never happen, considering what it took to move this tank in the first place, I would build/pay for a steel frames stand, and use magnetically attached wooden facades, to maximize under-tank space. Of course it would have to be painter darn well to avoid rusting!

    V

  6. Vhuang168

    Vhuang168 Supporting Member

    Joined:
    Mar 2, 2015
    Messages:
    2,896
    Likes Received:
    839
    @Flagg37 can weld frames. Stainless even.


    Sent from my iPhone using Tapatalk

  7. Vincerama2

    Vincerama2 Evil Overlord

    Joined:
    Nov 22, 2005
    Messages:
    1,823
    Likes Received:
    82
    You can also fill a spray bottle with vinegar and spray it in the overflow, but of course you'll have to do this a few times. You also still have the bulkeheads/pipes that came with the tank so you could re-install them and fill the area with vinegar.

    V

  8. Flagg37

    Flagg37 Colorado member

    Joined:
    Nov 29, 2015
    Messages:
    3,448
    Likes Received:
    920
    Yep, but stainless steel isn't magnetic so the panels would need fasteners.

    Gablami and Coral reefer like this.
  9. Coral reefer

    Coral reefer President

    Joined:
    Mar 26, 2010
    Messages:
    7,669
    Likes Received:
    1,144
    This man seems to know what he's talking about

    Gablami likes this.
  10. alvin chiao

    alvin chiao Guest

    Joined:
    Mar 9, 2016
    Messages:
    41
    Likes Received:
    4

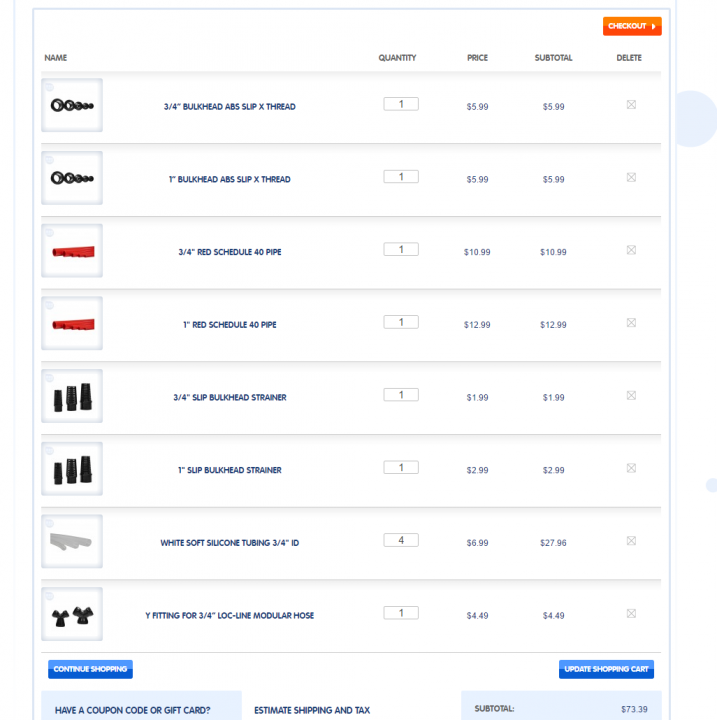

    okay so i made a preliminary list of plumbing items:


    i know off the bat i need some sort of valve for the main drain and some return nozzles. i picked up a tunze 1073.020 rated for 634 gph off a member. theres a 58 gallon tank and a 35 (max) gallon sump: 58+35=93, 634/93 = 6.8x turnover (?) should be good enough. there was also someone selling a bigger return pump but i think this one will be ok. i was unsure of how the piping (white soft silicon tubing 3/4" (4ft)) connects to the return pump

    how do all these valeves work? i want to use flex tubing as much as possible. what are check valves for? can i use the flex tubing on the threaded side from the tank to the sump? how do i connect the tubing to the return pump?

  11. Coral reefer

    Coral reefer President

    Joined:
    Mar 26, 2010
    Messages:
    7,669
    Likes Received:
    1,144
    Show a pic of your return pump. Some have a barb that flex tube pushes onto, some need a fitting to connect the two. Don't bother w check valves. Find a better solution like keeping return close to surface or drilling a siphon break hole in a return nozzle.

  12. alvin chiao

    alvin chiao Guest

    Joined:
    Mar 9, 2016
    Messages:
    41
    Likes Received:
    4

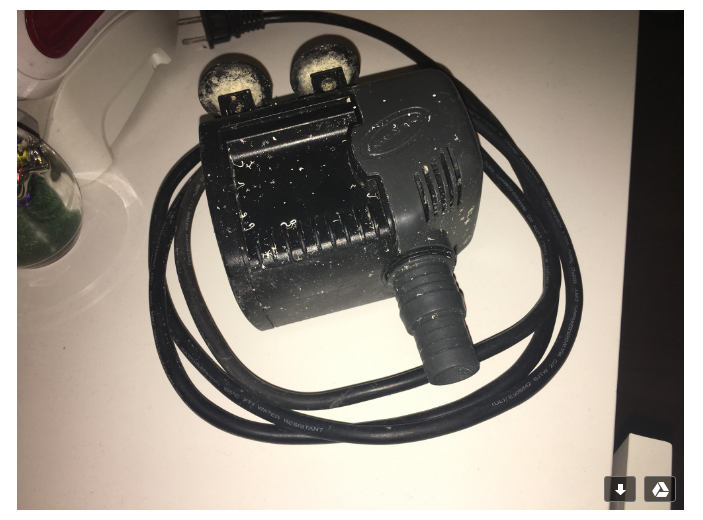

    hmm i see what you are saying. i measured and the pump is 3/4" across. what do i use to tighten it around the pump? can zipties work?

    then i have it go to a return, or a Y and then two returns? can my 634gph pump handle two returns? seems like im better off with one then using something inside the tank. or upgrading the return pump if i want to do 2. any good return recommendations?


    Attached Files:

  13. RandyC

    RandyC Supporting Member

    Joined:
    Aug 20, 2016
    Messages:
    1,224
    Likes Received:
    543
    I use plastic clamps from my local Ace hardware store. Use outer diameter of tubing and get the correct size. The Ace hardware I go to has about 20-30 different sizes sold individually for $1-1.5.

    [​IMG]


    Coral reefer likes this.
  14. Vhuang168

    Vhuang168 Supporting Member

    Joined:
    Mar 2, 2015
    Messages:
    2,896
    Likes Received:
    839
    You need to measure how many 90deg elbows you are going to use and total number of feet in hose/tubing you will use.

    All that creates head pressure and the gph drops quite a bit.

    From the manual

    https://www.tunze.com/fileadmin/gebrauchsanleitungen/x1073.0588.pdf

    With a conservative head of 1m or 3.3', flow drops to 1.25 cubic meter/hr or 330g/hr.

    Your total volume of water is probably closer to 65g so might be ok at around 5x if the plumbing is short enough.


    Sent from my iPhone using Tapatalk

  15. Coral reefer

    Coral reefer President

    Joined:
    Mar 26, 2010
    Messages:
    7,669
    Likes Received:
    1,144
    Even 2-3x turnover is fine imo. You're going to want some extra in tank flow anyways

    Last edited: Feb 23, 2017
  16. xcaret

    xcaret Supporting Member

    Joined:
    Feb 21, 2008
    Messages:
    4,254
    Likes Received:
    297
    You sure can use zip ties, cheap. For your tank's volume 300-600 gph pump should do the trick to bring water up from the sump so the Tunze will do.

  17. alvin chiao

    alvin chiao Guest

    Joined:
    Mar 9, 2016
    Messages:
    41
    Likes Received:
    4
    Do I need any 90 degree elbows? I want to use soft pipe to bring up water back. Only 90 I can think of would be right at the top near the return.

  18. xcaret

    xcaret Supporting Member

    Joined:
    Feb 21, 2008
    Messages:
    4,254
    Likes Received:
    297
    If you design it with elbows in mind then yes but you are using flexible stuff so you'll avoid them.

  19. alvin chiao

    alvin chiao Guest

    Joined:
    Mar 9, 2016
    Messages:
    41
    Likes Received:
    4

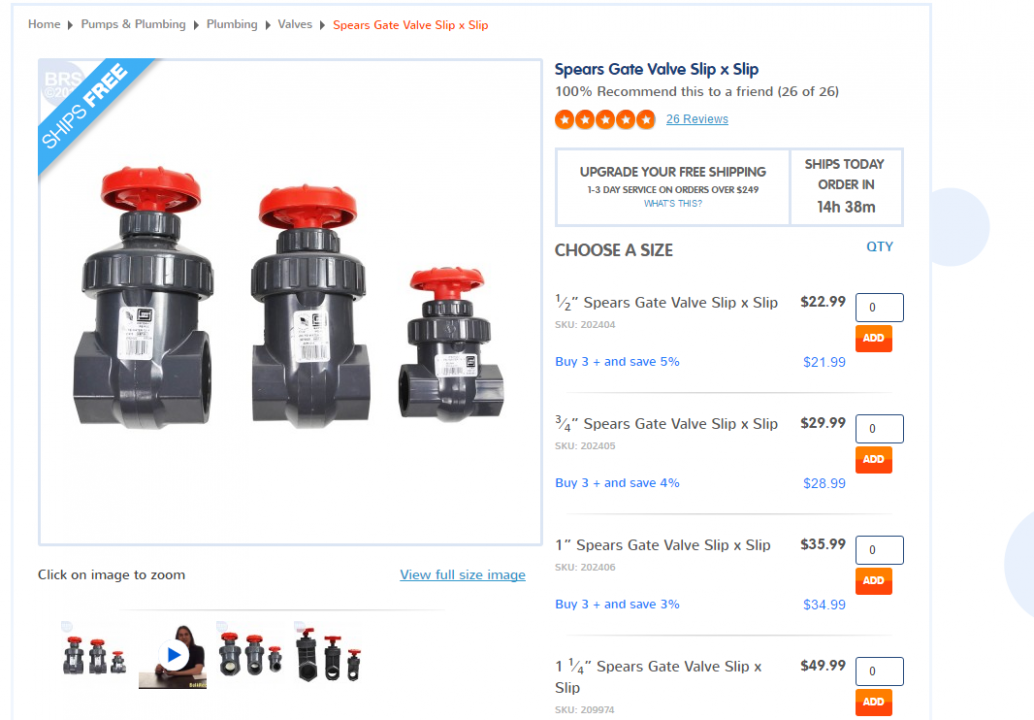

    Can I make the one inch pipe the one with the durso standpipe? And the 3/4" one an open emergency line? I'm so messed up, I bought all these different parts. I think I need a new standpipe for the 3/4" drain which should be the main drain? I have a gate valve for 3/4". So either I need a 1 inch gate valve or a 3/4" durso standpipe. I can use the gate 3/4" gate valve on the return I guess?

  20. alvin chiao

    alvin chiao Guest

    Joined:
    Mar 9, 2016
    Messages:
    41
    Likes Received:
    4
    [​IMG] Here's a picture. Is the durso standpipe for main? and if so, can my 1 inch drain be the main then the smaller 3/4" drain be emergency? They both go down to those white tubes via silicone tubing. The white tubes go in the sump and are fitted with 1" barbs for the two drains on the bulkhead which also both have 1" barbs for tubing.
