Our DSA Neo 105 Build

Discussion in 'Tank Journals' started by coral4me, Dec 1, 2016.

  1. Paratore

    Paratore Guest

    Joined:
    Feb 19, 2017
    Messages:
    21
    Likes Received:
    7
    I really like that overflow! I know, dumb thing to notice lol. But normally they look ugly and stick out like a sore thumb.
    But yours is very sleek and fits right in!


    Sent from my iPhone using Tapatalk

    coral4me likes this.
  2. coral4me

    coral4me Supporting Member

    Joined:
    Mar 11, 2015
    Messages:
    468
    Likes Received:
    178
    I needed a way to route cables and also punch a hole in my inner wall because the sump pump cord was too short to reach around the back of the stand.

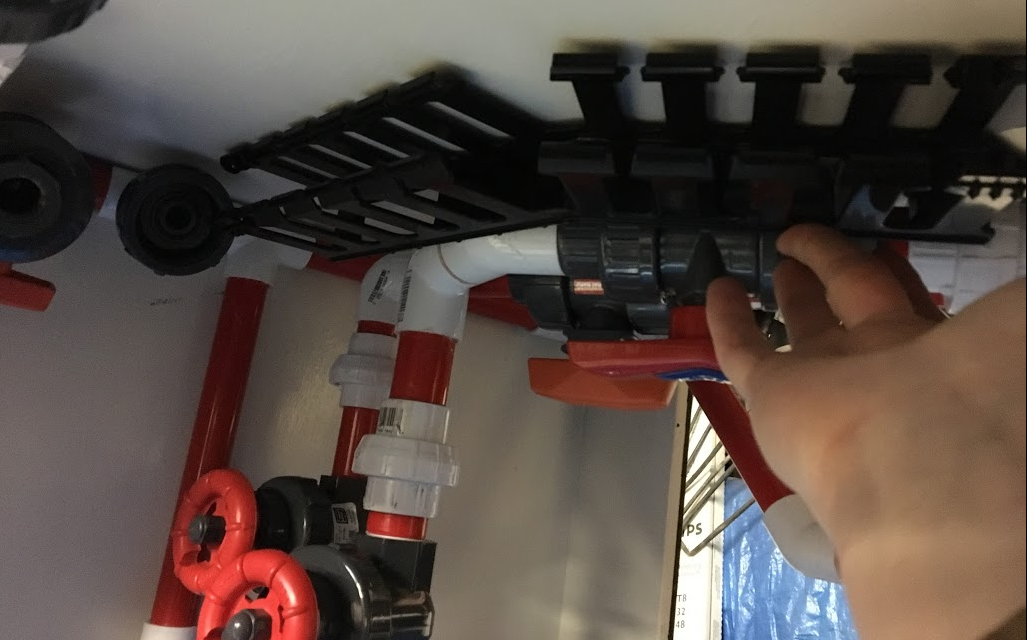

    I decided to install Panduit Cable Manages that I bought at Wierd Stuff Warehouse a few years back. Then I used a heat bender to bend it, although you could just simply cut it if you wanted.
    Screen Shot 2017-04-04 at 4.07.02 PM.png

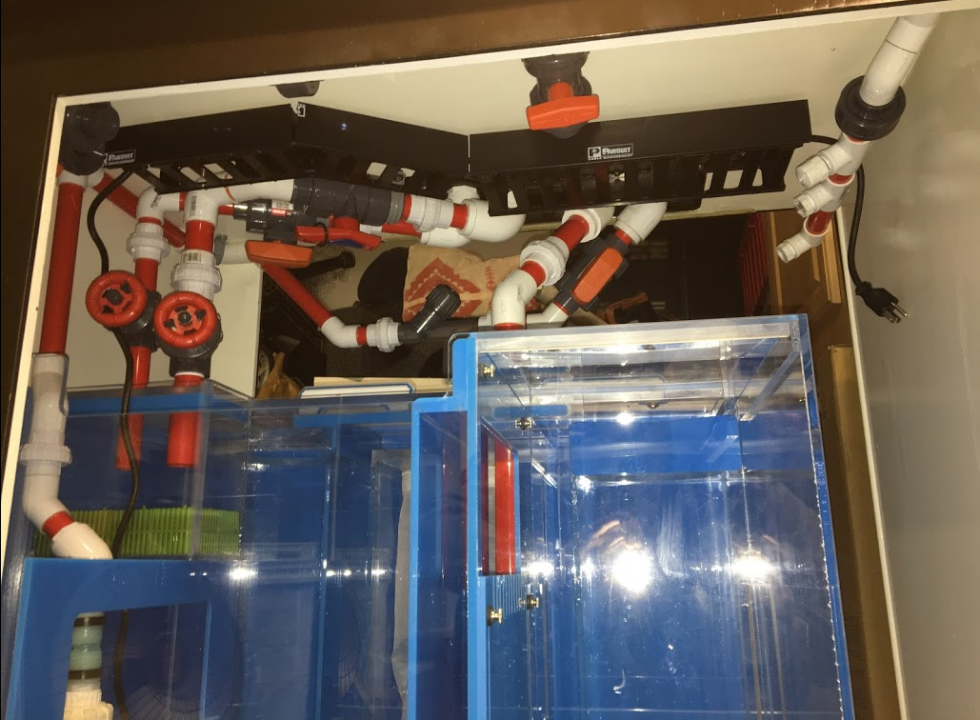

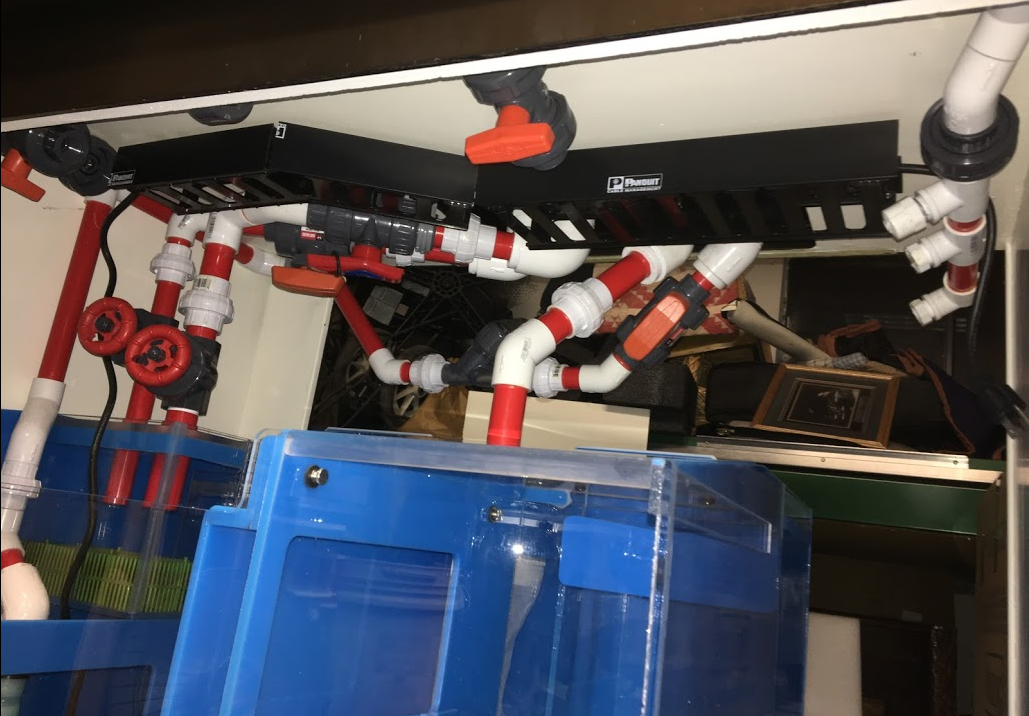

    The nice thing about these cable managers is the covers hinge. I mounted the cable managers with a 1/4" spacer on top to allow room for the covers to hinge up out of the way when added/removing cables.
    Screen Shot 2017-04-04 at 4.07.27 PM.png Screen Shot 2017-04-04 at 4.07.48 PM.png

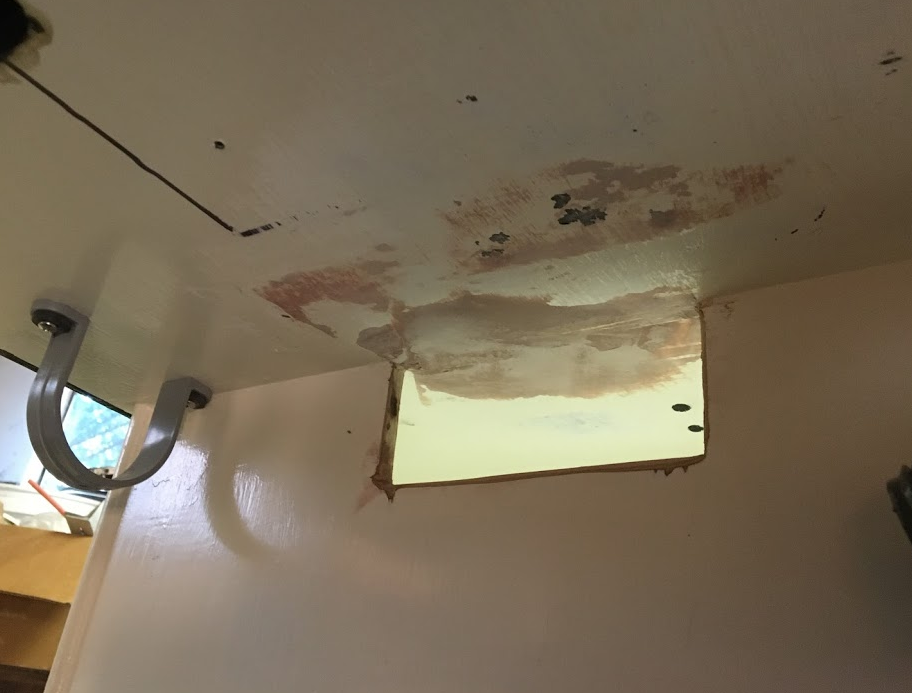

    Next, I cut a pass through into the dry side. Even though I was careful, I scuffed it a bit. In this pic I had just added a little Bondo and sanded.
    Screen Shot 2017-04-04 at 4.08.25 PM.png

    Here's what it looked like after a little paint touch-up.
    Screen Shot 2017-04-04 at 4.08.46 PM.png

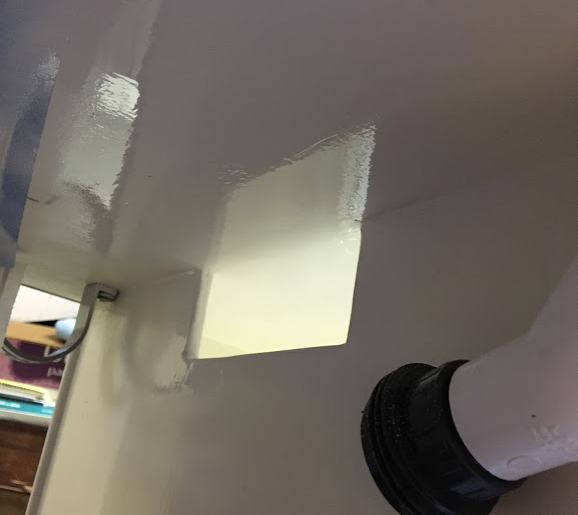

    Looks like it had always been there. Right?
    Note: the wire managers line up with the cutout, but were removed during the addition of the cutout.
    Screen Shot 2017-04-04 at 4.08.57 PM.png

    Next post, the tank will actually move to my house and get water, soon to be followed by aquascaping.


    Attached Files:

    Last edited: Aug 16, 2018
  3. Vhuang168

    Vhuang168 Supporting Member

    Joined:
    Mar 2, 2015
    Messages:
    3,001
    Likes Received:
    870
    Depending on how much return flow you will run, you will probably have to extend the emergency n secondary drain higher.

    In a bean animal, the water level in the overflow is just over the bottom of the horizontal leg on the secondary.

    The drop from the grate in the overflow to that level is pretty big and will likely cause splashing noises.

    I ran into the same issue with mine.



    Sent from my iPhone using Tapatalk

  4. MolaMola

    MolaMola Supporting Member

    Joined:
    Dec 16, 2014
    Messages:
    798
    Likes Received:
    252
    Great setup! I have the same overflow but plumbed it very differently. What does that siphon pipe do? Sorry - don't know much about plumbing.

  5. MolaMola

    MolaMola Supporting Member

    Joined:
    Dec 16, 2014
    Messages:
    798
    Likes Received:
    252
    Awesome overflow cover, too! Great idea.

    coral4me likes this.
  6. coral4me

    coral4me Supporting Member

    Joined:
    Mar 11, 2015
    Messages:
    468
    Likes Received:
    178
    The siphon will drain a lot of water fast and quiet. The durso functions a little louder because it pulls air down with the water into the sump. I use the gate valve to dial in siphon flow to match the amount of water going into the overflow.

  7. coral4me

    coral4me Supporting Member

    Joined:
    Mar 11, 2015
    Messages:
    468
    Likes Received:
    178

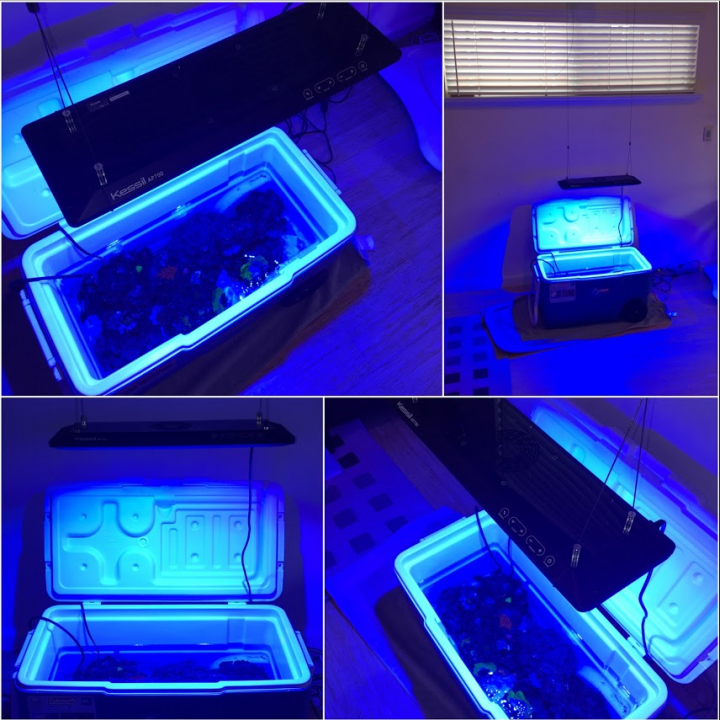

    Here it is, my new tank.
    Do you think the AP700 is over kill? :p
    Screen Shot 2017-04-05 at 3.31.07 PM.png
    @roostertech and @Flagg37 gave me a few rocks along with a bunch of cerith snails. Thanks guys!
    Just happened to have mounted the light to the ceiling earlier that day. :)

  8. coral4me

    coral4me Supporting Member

    Joined:
    Mar 11, 2015
    Messages:
    468
    Likes Received:
    178

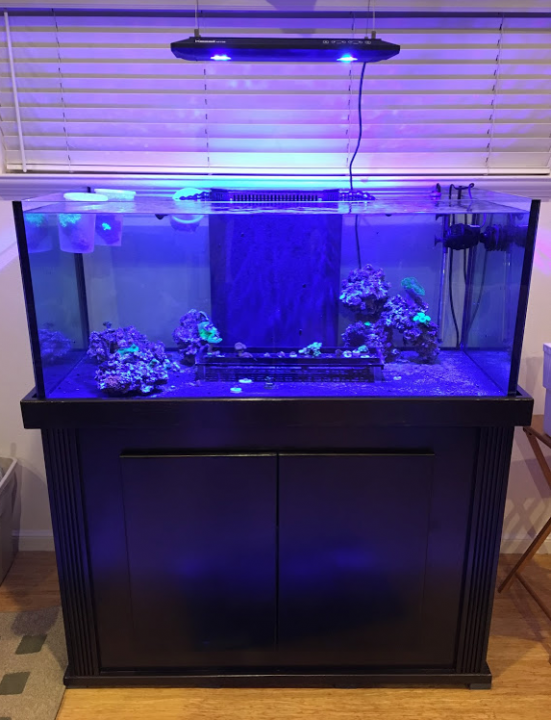

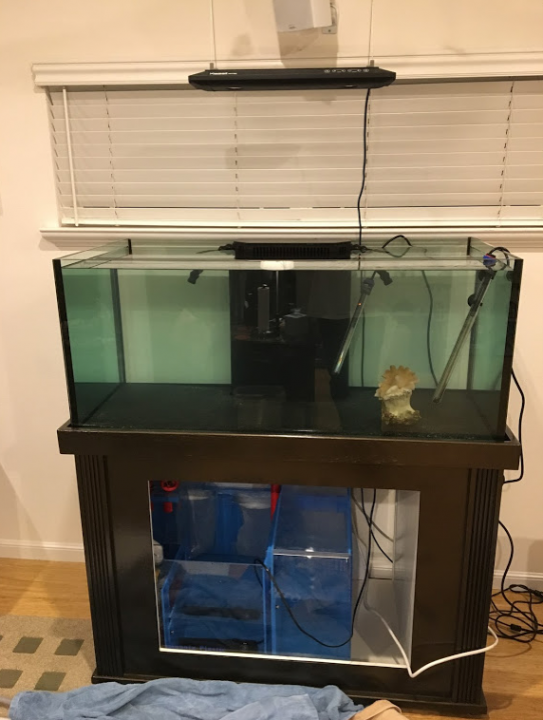

    Finally got water in the tank the night before the BAR frag swap.
    Screen Shot 2017-04-04 at 4.09.55 PM.png

    Rocks from the ice chest helping to cycle the tank.
    Screen Shot 2017-04-04 at 4.12.53 PM.png

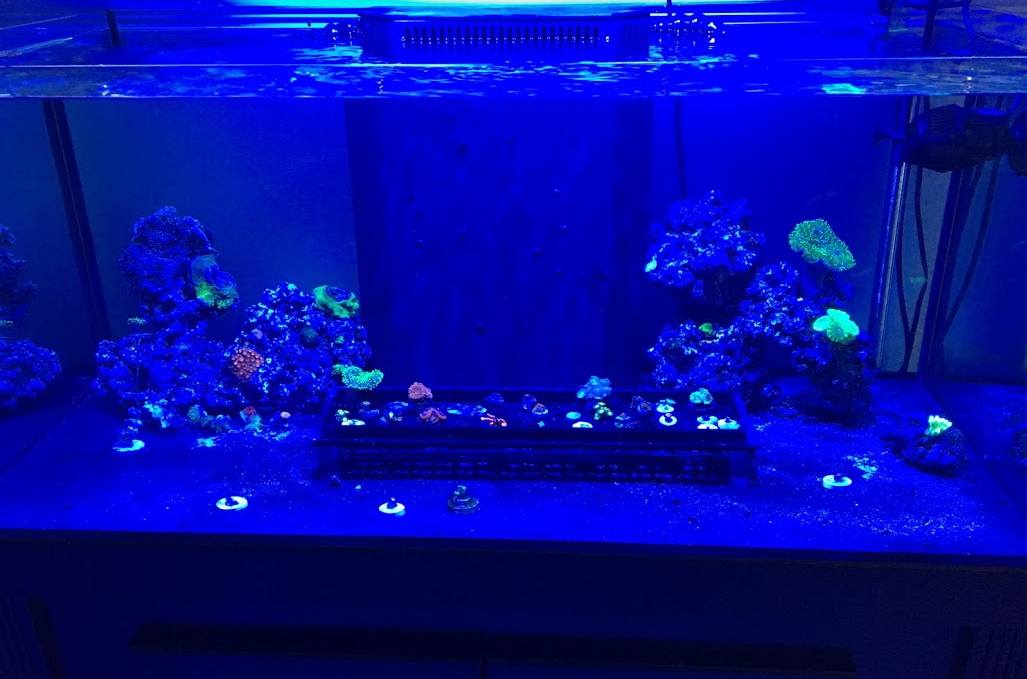

    Some of the frags are from the frag swap. Thanks everyone.
    Screen Shot 2017-04-04 at 4.13.13 PM.png

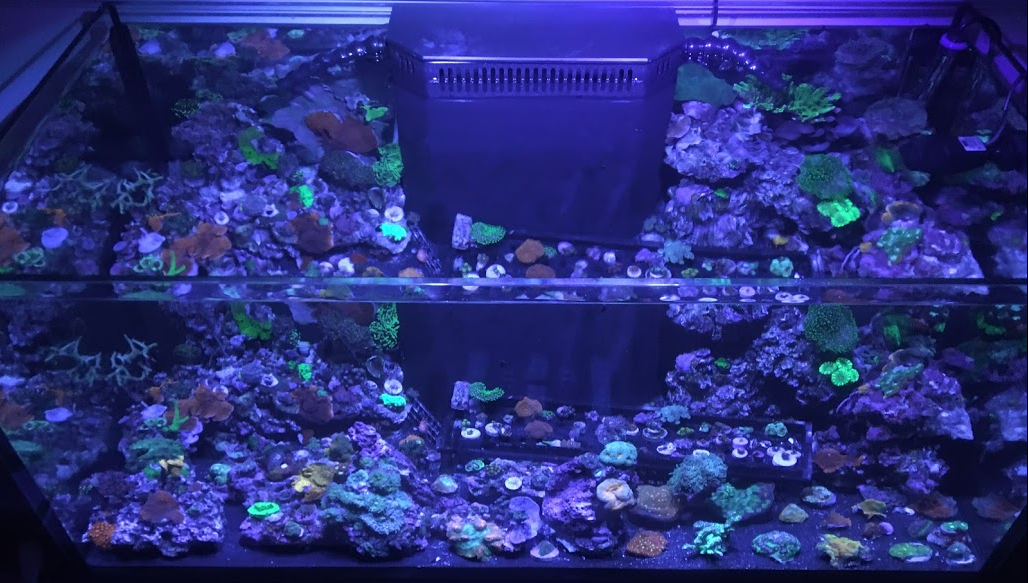

    This last weekend I began dismantling the scape from our 90 gallon bow front and staged almost everything in the new tank so I could get the lower base rock out of the old tank and begin constructing the new rock formations.
    Screen Shot 2017-04-04 at 4.14.12 PM.png

    Screen Shot 2017-04-04 at 4.14.30 PM.png

    Last edited: Apr 7, 2017
  9. Gablami

    Gablami Guest

    Joined:
    Sep 28, 2016
    Messages:
    1,445
    Likes Received:
    424
    Wow that's a lot of stuff. Can't imagine trying to setup scape and figure out placement all in the same area...


    Sent from my iPhone using Tapatalk

  10. coral4me

    coral4me Supporting Member

    Joined:
    Mar 11, 2015
    Messages:
    468
    Likes Received:
    178

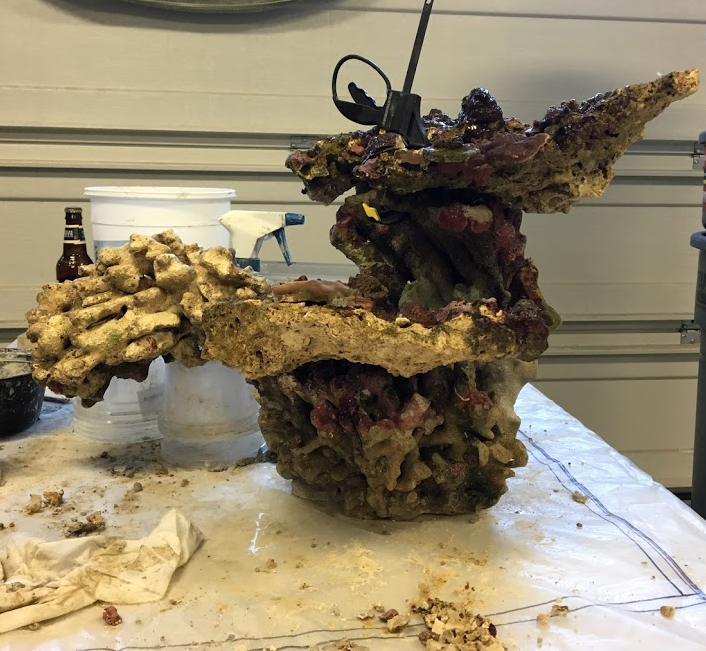

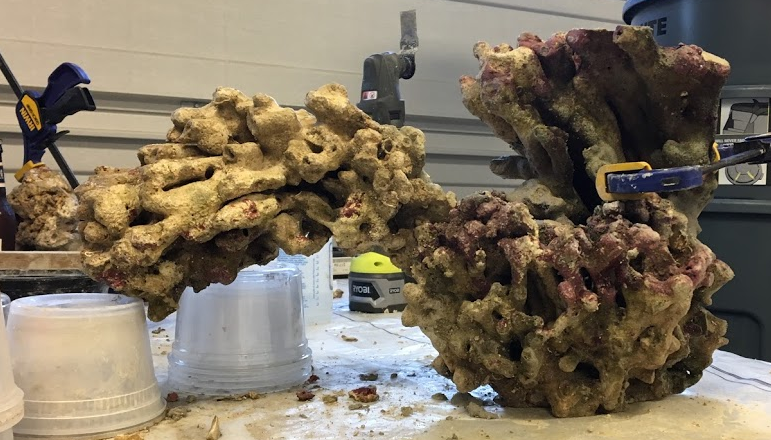

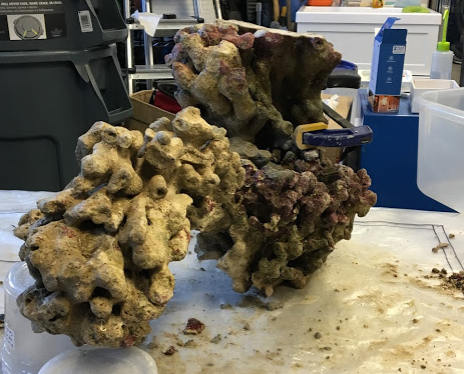

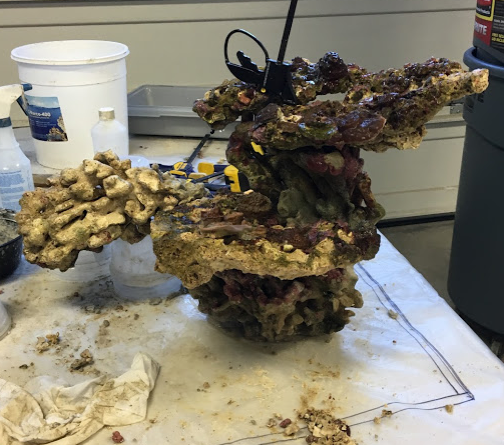

    I had been really looking forward to building the aquascape. It was a little crazy at first with so much rock and so many corals. I was kind of like, where should I begin, but you'll see I am off to a pretty good start.
    Screen Shot 2017-04-04 at 4.14.44 PM.png Screen Shot 2017-04-04 at 4.14.56 PM.png
    Screen Shot 2017-04-04 at 4.15.17 PM.png Screen Shot 2017-04-04 at 4.15.37 PM.png

    A few shots in the tank. You can see it's basically a big frag rack. I was thinking I'd make the arm without hole mostly Zoas.

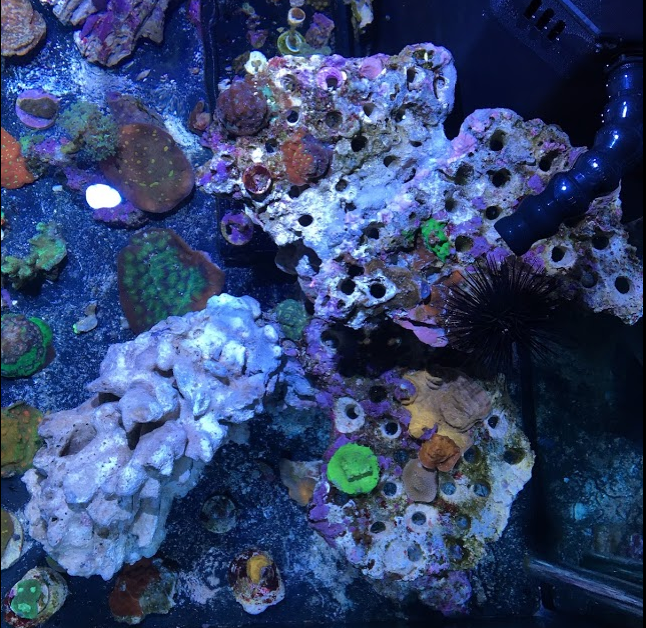

    (Top Down)
    Screen Shot 2017-04-05 at 3.48.30 PM.png

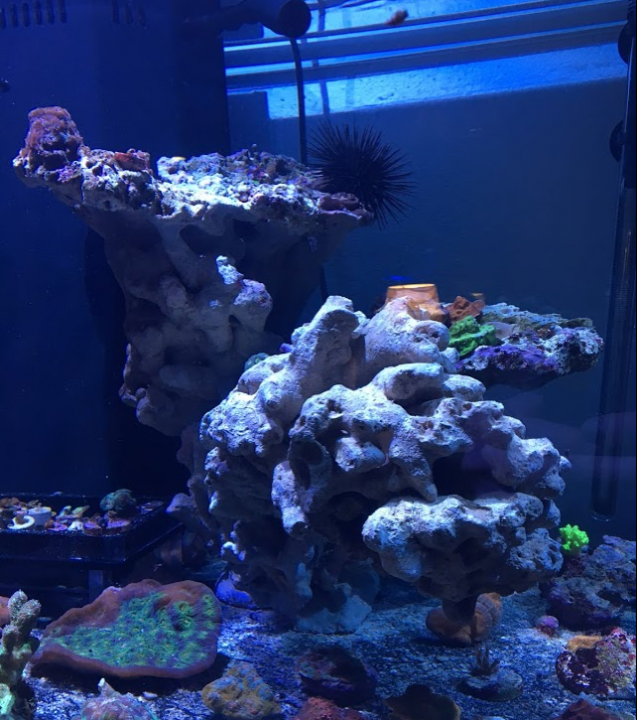

    (Straight on from Front)
    Screen Shot 2017-04-05 at 3.48.49 PM.png

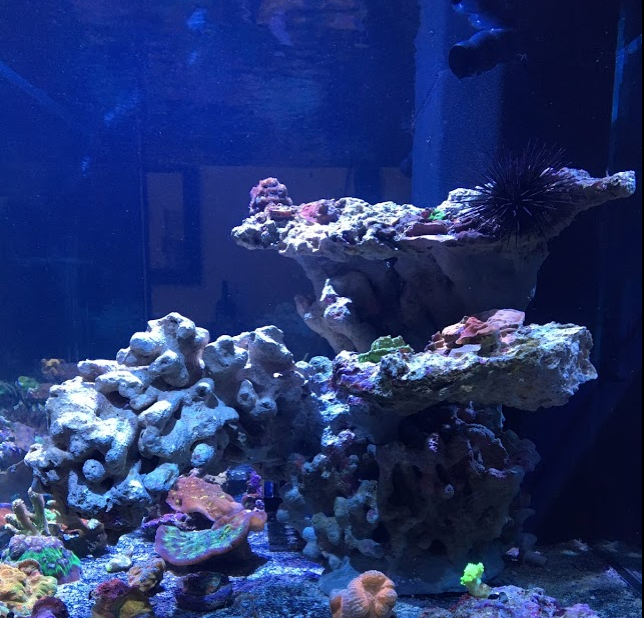

    (Right Side of Tank)
    Screen Shot 2017-04-05 at 3.49.08 PM.png

  11. coral4me

    coral4me Supporting Member

    Joined:
    Mar 11, 2015
    Messages:
    468
    Likes Received:
    178

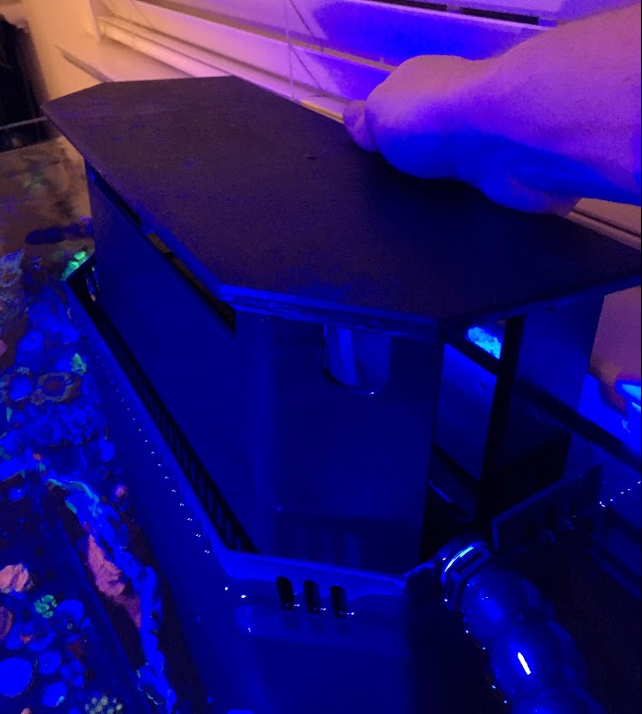

    Vincent, great eye! You are spot on with your overflow observation. I ended up making the durso, syphon and emergency overflow longer and I even added a flange to the inside of my overflow lid. The water pours through the grate and onto the flange to quiet it. I cut the a window in the top of the flange so if it were to get plugged up, the water could just go over it.
    Screen Shot 2017-04-05 at 3.47.55 PM.png Screen Shot 2017-04-05 at 3.48.11 PM.png

    Last edited: Apr 7, 2017
    Vhuang168 likes this.
  12. Vhuang168

    Vhuang168 Supporting Member

    Joined:
    Mar 2, 2015
    Messages:
    3,001
    Likes Received:
    870
    Great idea on the flange! I may have to steal that when I make a cover for my overflow!


    Sent from my iPhone using Tapatalk

    coral4me likes this.
  13. Paratore

    Paratore Guest

    Joined:
    Feb 19, 2017
    Messages:
    21
    Likes Received:
    7
    The scape is coming together nicely! I really like the shelfs and how there is lots of open room for the corals to grow and fish to swim :) I've always been a fan of scales where lots of negative space is used. Nice work! I've enjoyed watching this tank come together.


    Sent from my iPhone using Tapatalk

    coral4me likes this.
  14. sfsuphysics

    sfsuphysics Supporting Member

    Joined:
    Nov 7, 2005
    Messages:
    12,998
    Likes Received:
    1,072
    Gebus Christmas.... there's that one youtube guy "The King of DIY" but I think I'm going to ask for a revote, because you're a fricking artist with what you're doing on that tank.

    coral4me likes this.
  15. roostertech

    roostertech reef noob

    Joined:
    Mar 22, 2016
    Messages:
    1,447
    Likes Received:
    463
    That youtube dude only make ghetto looking craps lol. Not even close to this quality.

  16. coral4me

    coral4me Supporting Member

    Joined:
    Mar 11, 2015
    Messages:
    468
    Likes Received:
    178
    Haha thanks guys! I actually like watching his channel. He is in the process of building a large fish house. Wish I could find time to put together videos like he does.


    Sent from my iPhone using Tapatalk

  17. sfsuphysics

    sfsuphysics Supporting Member

    Joined:
    Nov 7, 2005
    Messages:
    12,998
    Likes Received:
    1,072
    Yeah I like watching him occasionally, although I watch a few videos and I find out how many people have channels about their tanks (most of which I don't want to hear about). I liked his big epoxy & plywood bottom build he did with a large 4-side viewable tank. Unfortunately gives me dangerous ideas watching him :D

  18. xcaret

    xcaret Supporting Member

    Joined:
    Feb 21, 2008
    Messages:
    4,469
    Likes Received:
    370
    I see a Ryobi osc. tool, did you use that to cut/flatten the rock?

  19. coral4me

    coral4me Supporting Member

    Joined:
    Mar 11, 2015
    Messages:
    468
    Likes Received:
    178
    Yeah, I used it a little. It cuts through the rock pretty well. I try to find rocks that naturally fit together, but you can help them fit a little better with the osc tool. I also shape the emaco to match and look like the rock structure and extend the rock up to make a few extra connection points when joining some of the pieces.


    Sent from my iPhone using Tapatalk

  20. xcaret

    xcaret Supporting Member

    Joined:
    Feb 21, 2008
    Messages:
    4,469
    Likes Received:
    370
    I tried it long ago with a Dremel blade and it went dull pretty fast, guess a carbide grit might be a better choice for the task. I'm tempted to use a concrete grinding cup on a right angle grinder to make the rock flat, just tempted; have too many projects lined up.
    Pretty nice job on the acrylic !

    coral4me likes this.
