Having challenge with wiring in a auto flush valve

I’m struggling a little to understand how to implement this auto flush valve on my RO/DI system. I have to pretty much manually wire everything together by hand so here’s what I got.

Booster pump
Low pressure switch
High pressure switch
Auto flush valve
Power supply

What’s the best way to wire all 5 of these together and all work together?

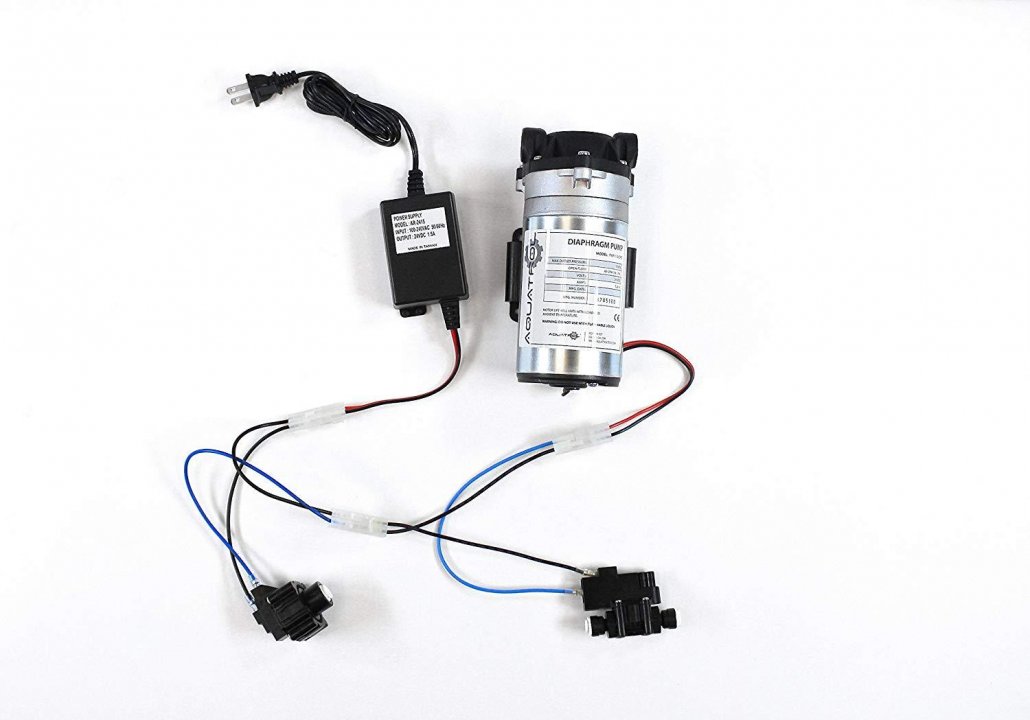

current system installed. Where do I splice in the auto flush?
