Underwater Blink Cam

Squist

Supporting Member

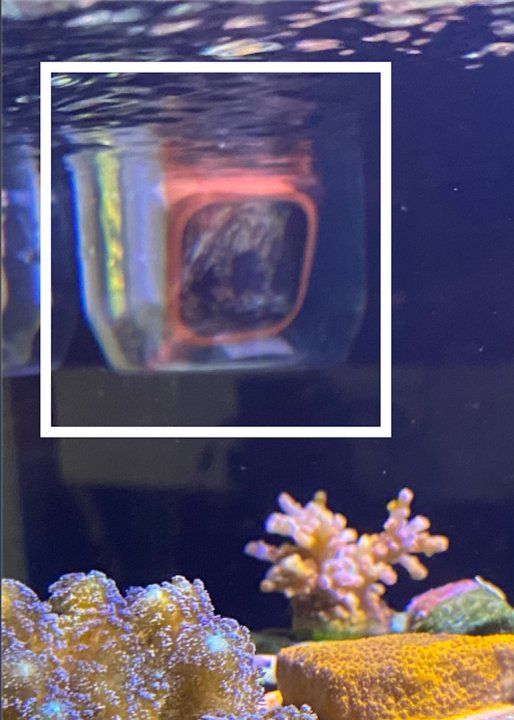

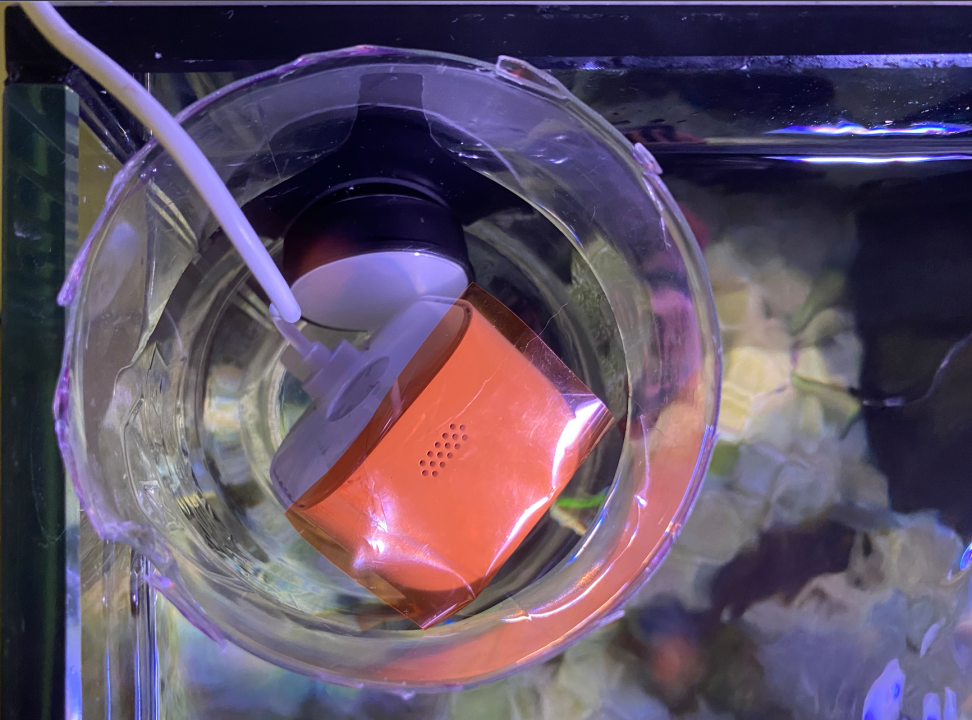

Had a Blink cam sitting around and recently received orange photography film for last week's event (@jccaclimber thanks!). I placed the cam into a plastic jar (from Algae Barn this is) and held the jar against the inside of the tank using two aquarium magnets I had lying around; 2 Two Fishes magnet backs.

underwater blink reef cam.png



I thought there was a good chance the magnets would interfere with the image or kill the camera but the camera works! And it's small -- which has me thinking about locating a proper acrylic tube and cemented magnets.

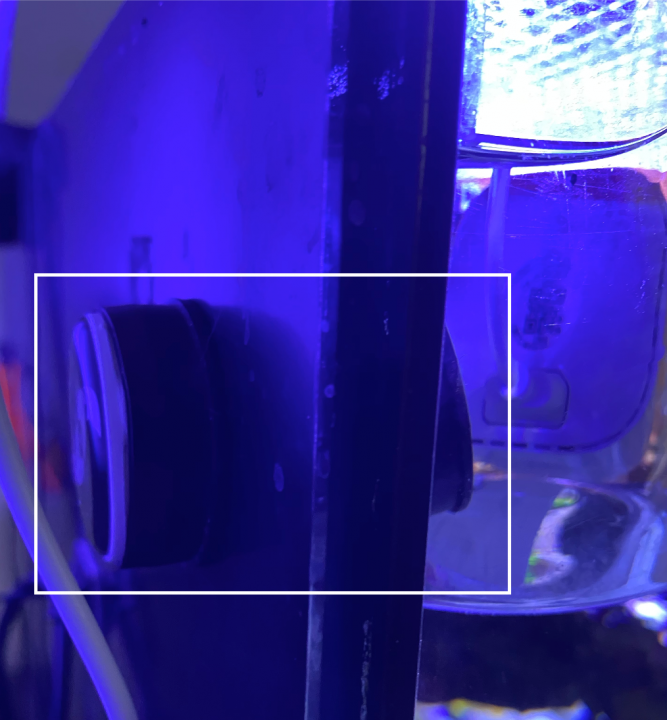

Two aquarium magnet backs hold the jar tightly against the glass corner. And with the lid in-place, the jar is fairly well-secured. At least for periodic use and prototyping.


I've wanted to see what my fish are doing at the top of my rockwork but they take off for deeper waters when I get close. This should do the trick. And I can watch fresh food dosing when that happens.

Reef cam video of automatic fresh food feeder dispensing 1ml of phytoplankton at ~500 gph.


Reef cam video of automatic fresh food feeder dispensing 1ml of mysis shrimp at ~500 gph.


I'm going to play around with acrylic tube next.

Last edited:

Meshmez

Supporting Member
That's pretty cool! but is there any reason to not just mount it directly to the glass on the outside of the tank? If you just want a fixed view, it seems like that would be safer and easier.


Squist

Supporting Member
That's pretty cool! but is there any reason to not just mount it directly to the glass on the outside of the tank? If you just want a fixed view, it seems like that would be safer and easier.
But it wouldn’t be an “underwater” cam ; )

You’re right — safer outside the tank. For whatever reason, guess I want to swim with the fishes. Dropping-in a cheap and small video camera anywhere in the tank is the ultimate goal.


JVU

BOD
Staff member
I like it! Just keep in mind anything you have touching reef water will soon no longer be see-through.


Meshmez

Supporting Member
But it wouldn’t be an “underwater” cam ; )

You’re right — safer outside the tank. For whatever reason, guess I want to swim with the fishes. Dropping-in a cheap and small video camera anywhere in the tank is the ultimate goal.
I agree, being able to "swim" the camera around would be neat!


jccaclimber

Supporting Member
I have a webcam that sits on the outside of my tank when I travel. I leave it disconnected the rest of the time as I don't want a camera continuously streaming from my house otherwise.
You would need a way to bulkhead the cable, but a snap-top container might be a nice way to seal that up.
One application I can think of is seeing what fish are doing in the caves down inside the rock stack, or in places not visible from outside the tank.
Nice to know that filter is getting used.
Whatever you use, make sure it can be cleaned of biological fouling.
