Here is a look at the control board. I made the board after all the tanks were up. I couldn’t stand the rats nest that I would have to navigate through every time I needed to do something. My goal behind this board was efficient operation of all equipment. Using the Kasa power strips allows me to individually control each outlet with the touch of a button. Rather than pulling each plug out or having to shut down the entire power bar.
View attachment 29258

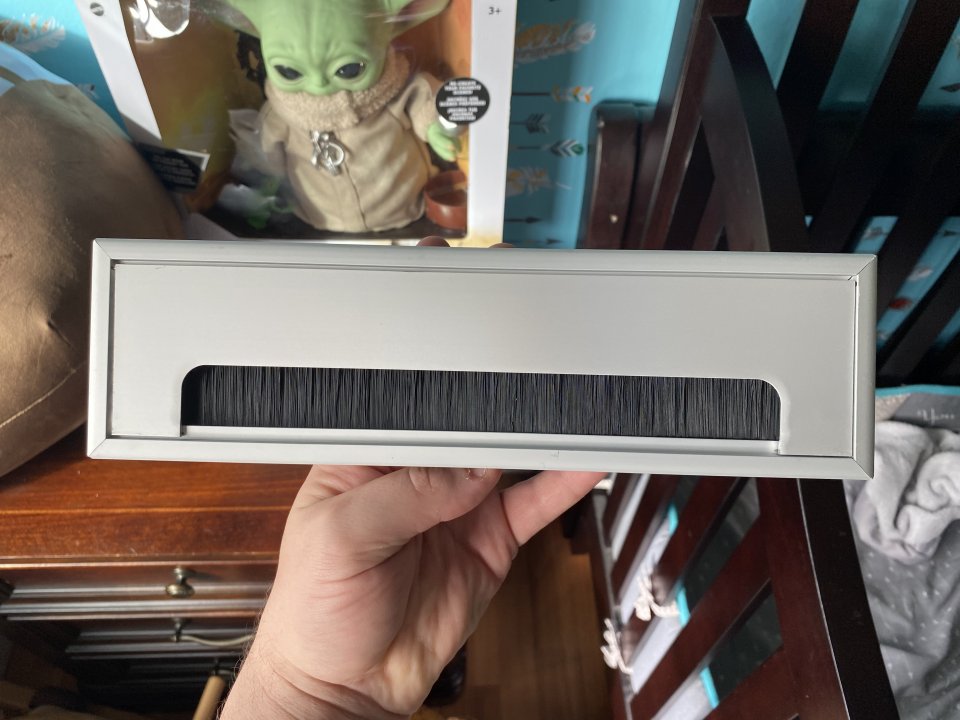

These are the cable grommets. Made of aluminum, the front flap flips up to pass the cables through.
View attachment 29259

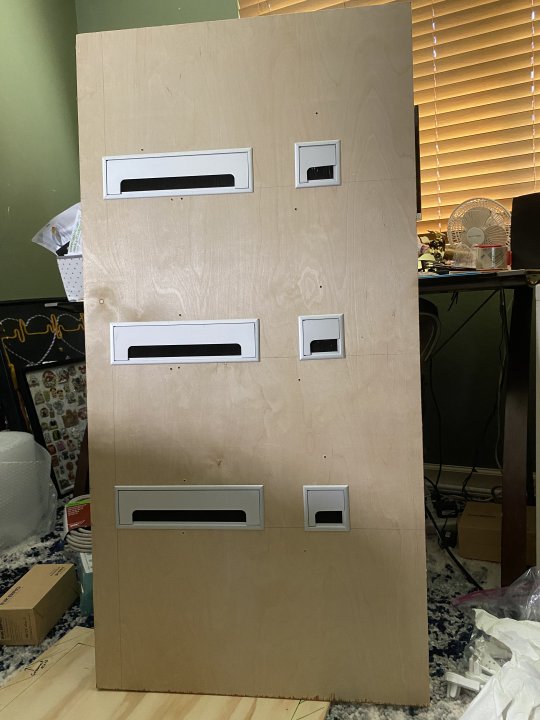

Just after routing the holes and installing grommet. Getting ready for tape and paint. I used a piece of 2’ x 4’ x 1/2” birch plywood for the actual board originally it was going to be acrylic but decided on plywood because of cost.
View attachment 29260

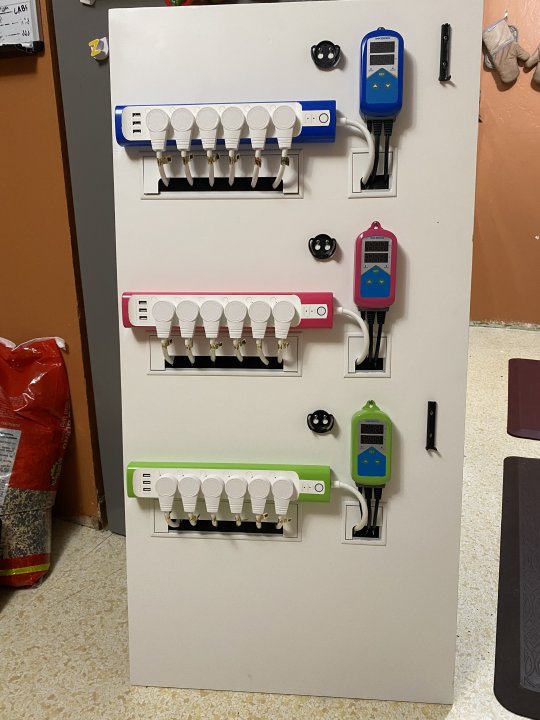

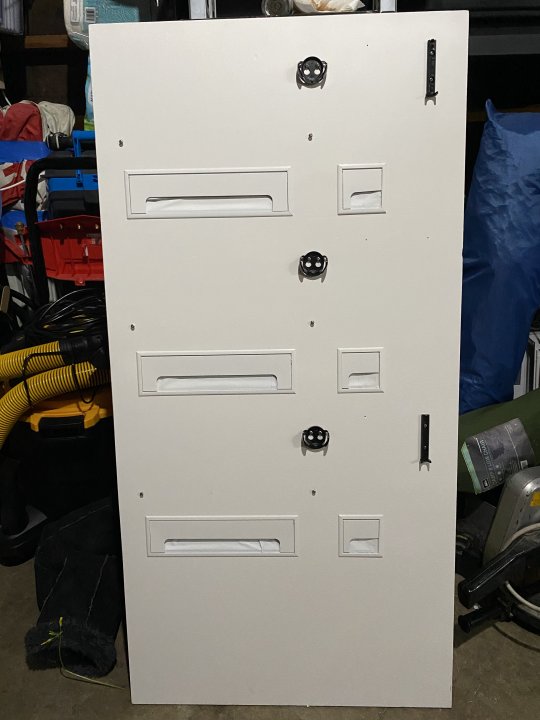

Painted and mounting hardware installed. Sanded with extra fine grit paper. Primed and painted flat white.
View attachment 29262
View attachment 29263
View attachment 29264
View attachment 29265

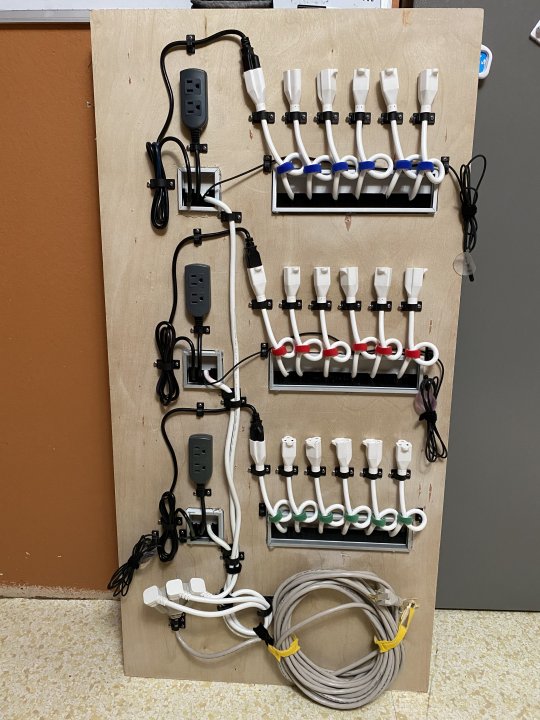

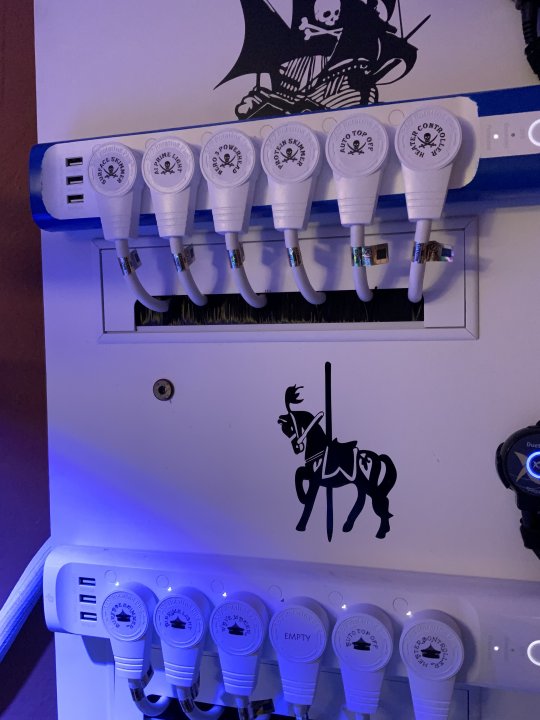

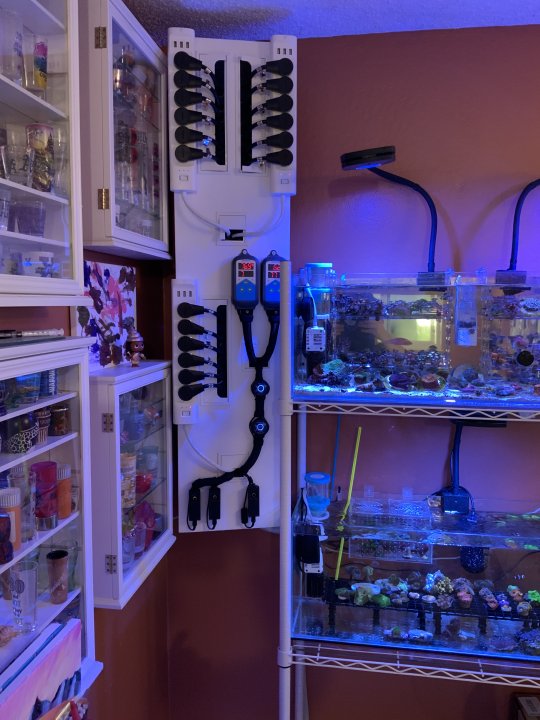

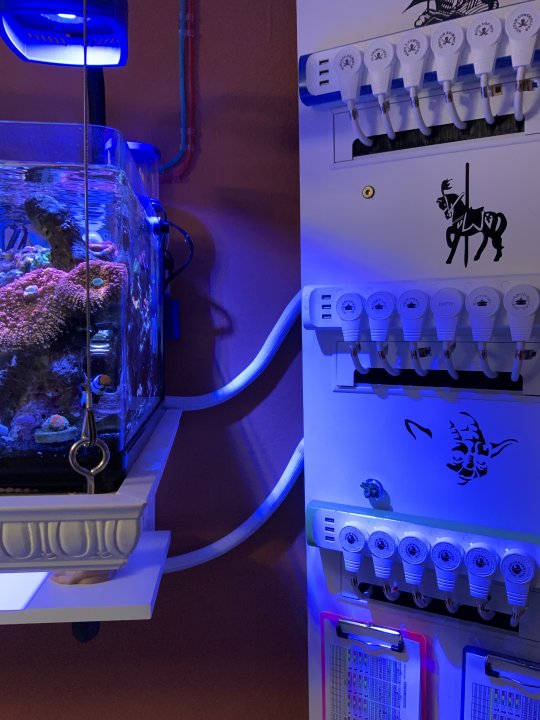

I color coded the power stripes and Ink bird controllers specific to their tanks. Blue ~ Pirates Bay, Pink ~ Fantasyland, Green ~ Dagabah. The white extension cords are 1‘ with a 360 degree flat swivel plug. Each outlet is labeled. Keeps everything uniform in front. All out to tank cords are then ran through a single piece of braided wire loom to make it look like a single cable running to the tank from behind the control board.
View attachment 29267
View attachment 29268

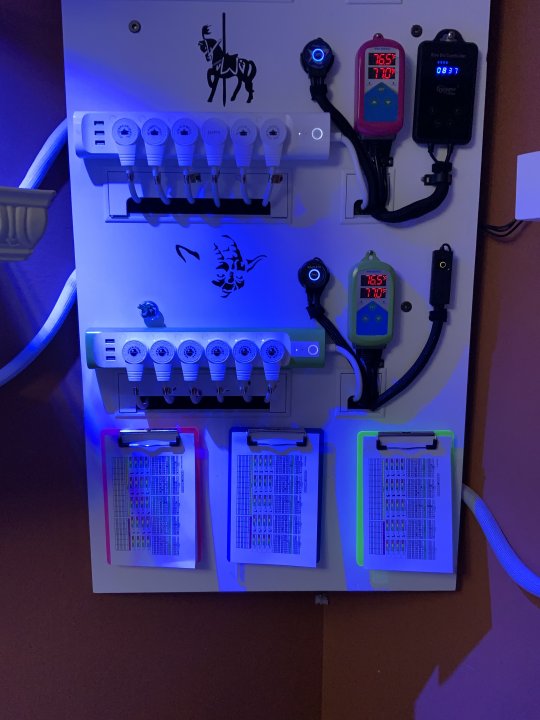

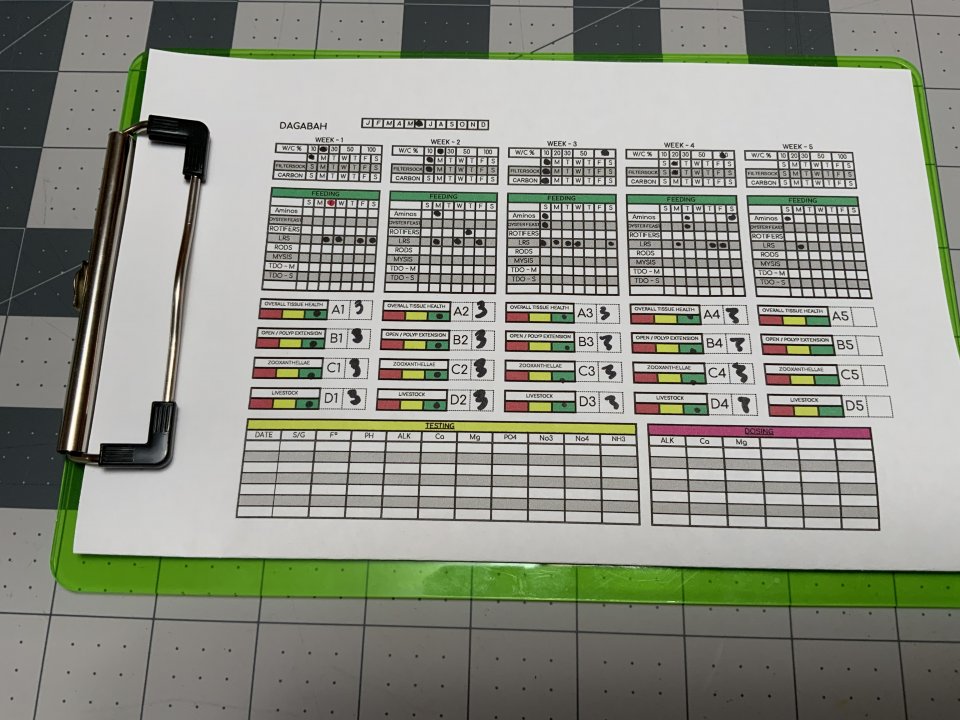

At the bottom of the control board are my tank data sheets where I track my tanks. They attach to the very bottom via magnets.
