Alexander1312
Supporting Member

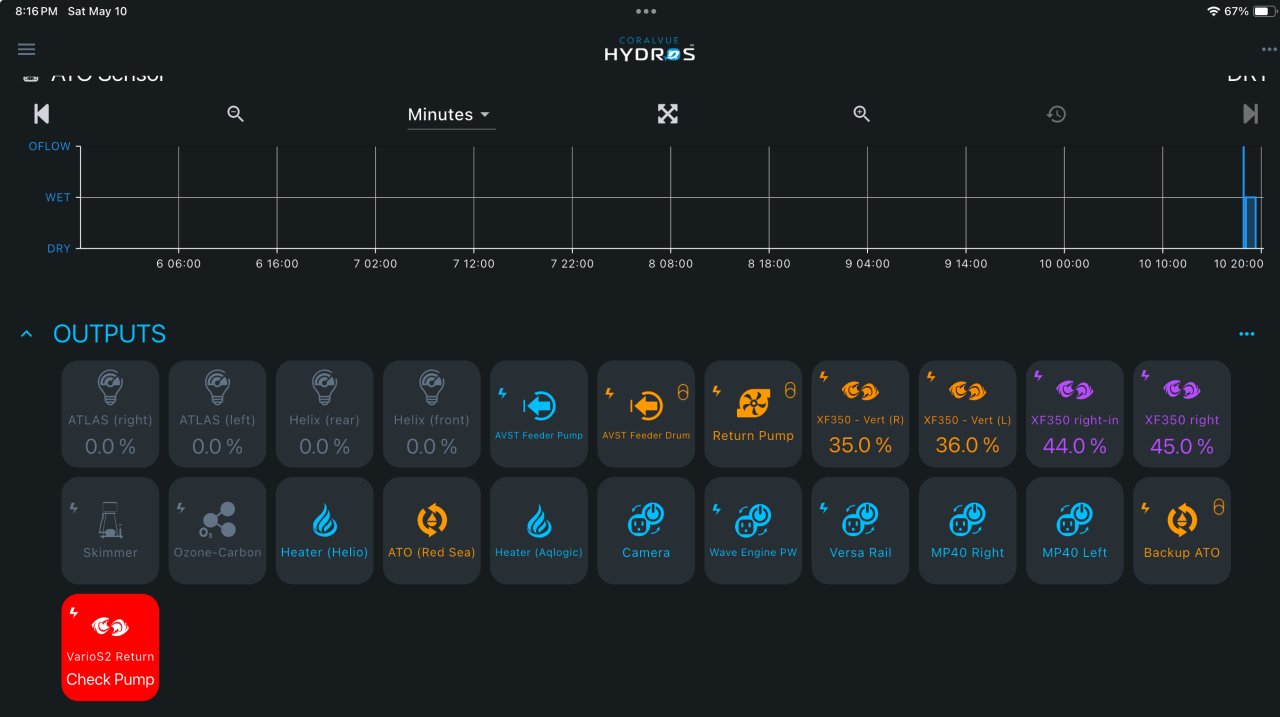

Not sure what I am doing wrong. The pump shows the error message. Can anyone see where the error is? Seemed so simple.
Connecting a VarioS2 to a Wave Engine LE
- Thread starter Alexander1312
- Start date
That’s funny I got that error a lot when adding a 4th pump to my WE which also happened to be a varios2. I even thought it was a bad dongle at one point and ordered another. I never actually got it working, it was like certain combos of pumps in certain outlets worked and some didn’t.
Alexander1312
Supporting Member
Good to know - will need to bother the folks from CoralVue then.
Or the Hydros Facbook group.
Alexander1312
Supporting Member

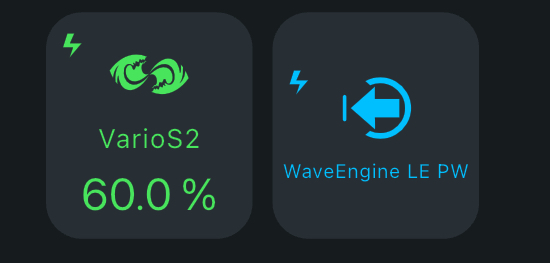

Found the reason - the WaveEngine LE needs to be connected to a power supply and the power supply (plugged into the XP8) needs to be activated.

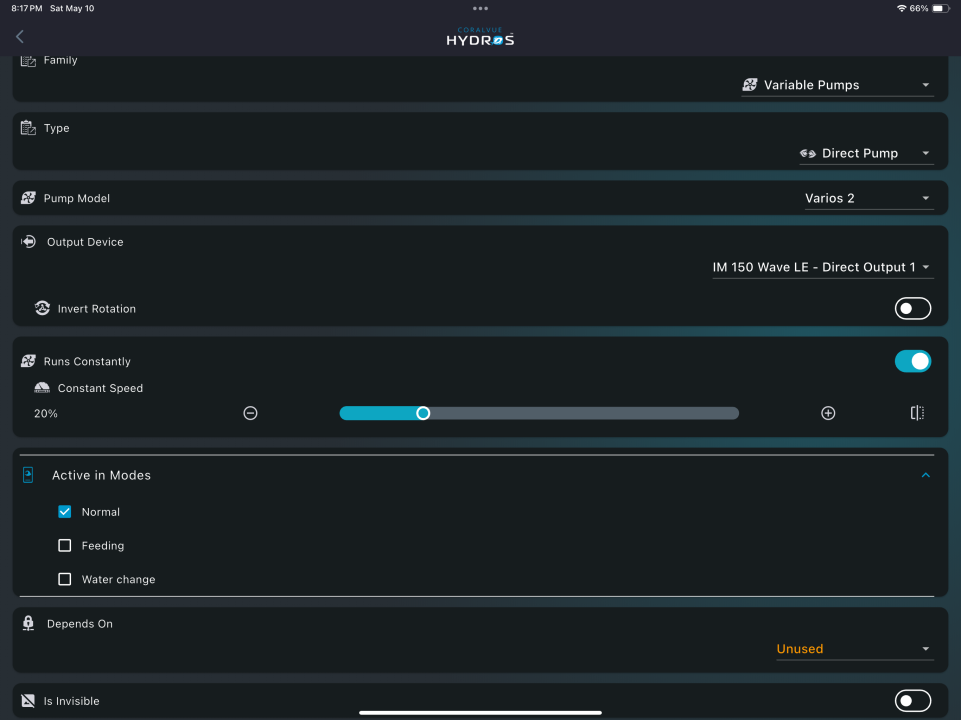

Also, it looks like the speed needs to be set at least <50% for the pump to start up.

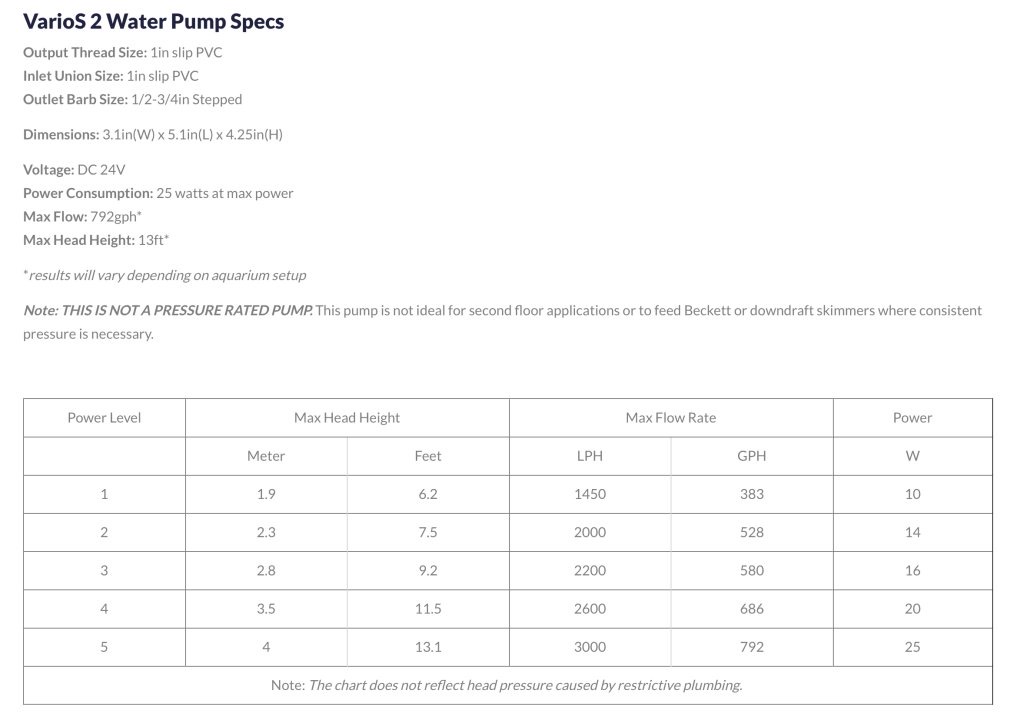

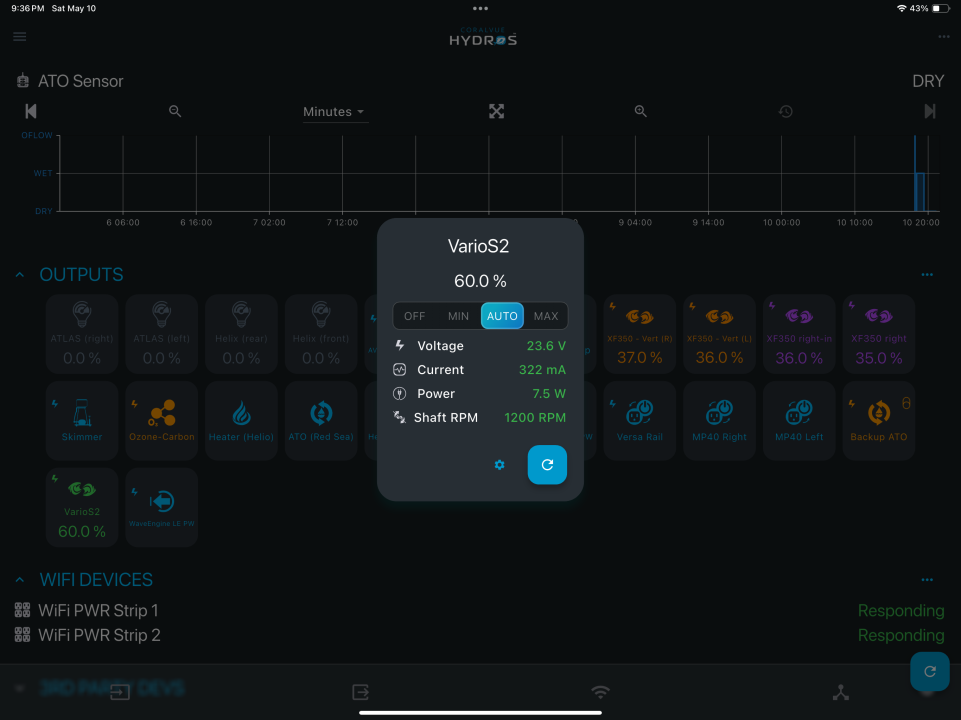

With the speed at 60%, the power draw is below 10 watts, which is the lowest setting via the manual controller, according to their table.
Also, it looks like the speed needs to be set at least <50% for the pump to start up.
With the speed at 60%, the power draw is below 10 watts, which is the lowest setting via the manual controller, according to their table.
