Plumbing of a VarioS 2

[Alexander1312]

I love this pump but looks like none of the fittings directly fit the hose of my tank. Is picture #1 how it is supposed to be connected?

#1

#2

#3



[derek_SR]

Alex Alex Alex. If you are using soft tubing you should use a barbed connector. I’m not sure what you’ve got going on in these pics but none are correct.



[Alexander1312]

Alex Alex Alex. If you are using soft tubing you should use a barbed connector. I’m not sure what you’ve got going on in these pics but none are correct.

Haha, thank you, yes, it looked wrong. I hate everything around plumbing, not sure if I said this previously .

The smallest barb connector it came with is on picture #2, but it is the weirdest thing as it cannot hold it in place.



[derek_SR]



[derek_SR]

The piece you had around the hose in the pics should screw down on top of the barb and lock it in place - then stick the hose on the barb. Vinyl can come loose over time so I’d use plastic hose clamp of some kind but not that big of a deal really if you get it on there pretty good.



[Alexander1312]

The piece you had around the hose in the pics should screw down on top of the barb and lock it in place - then stick the hose on the barb. Vinyl can come loose over time so I’d use plastic hose clamp of some kind but not that big of a deal really if you get it on there pretty good.

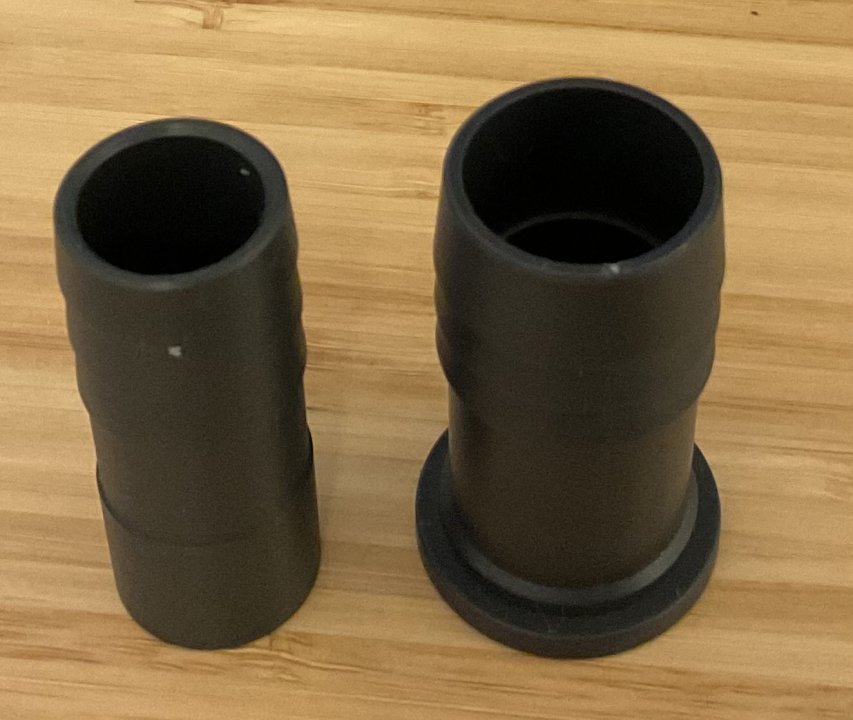

The left one is the right size, but only the right one can be held in place....



[derek_SR]

My backup varios just showed up so I can dig the parts out and take some pics if you still can’t get it.



[derek_SR]

The left one is the right size, but only the right one can be held in place....

View attachment 67295

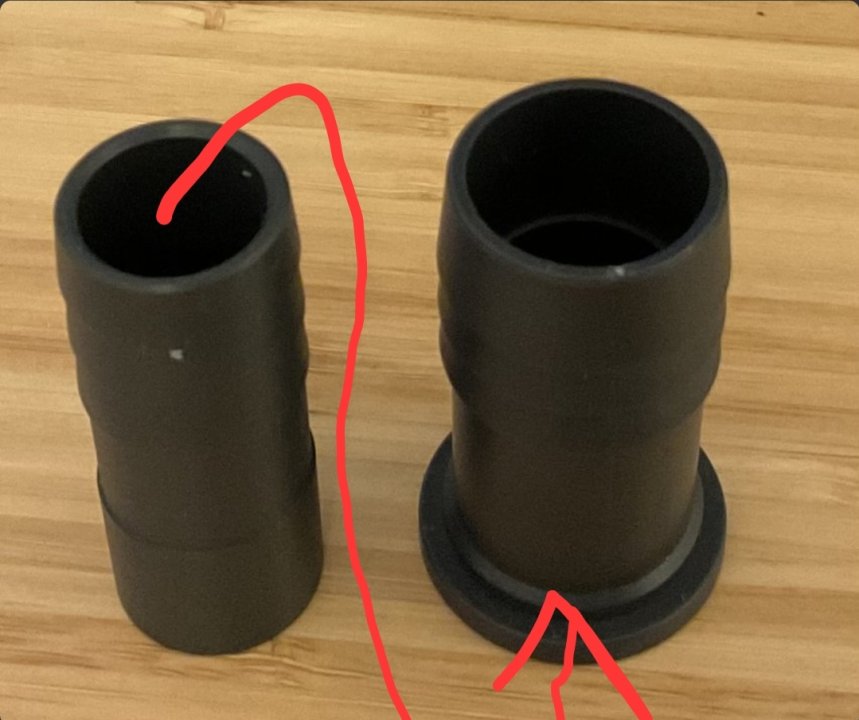

Oh - you jam the one on the left into the one on the right



[Alexander1312]

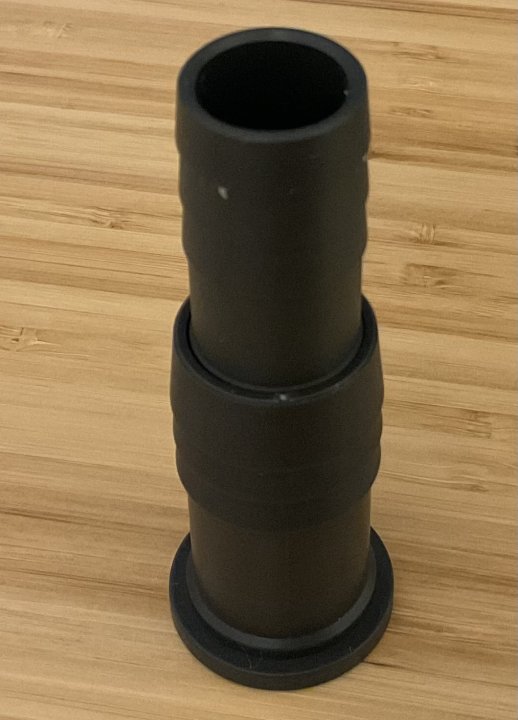

Like this - but the top will not be held in place through anything, only the lower part. Is this ok?



[derek_SR]

Like this - but the top will not be held in place through anything, only the lower part. Is this ok?

Yes and it should fit very snugly. You could glue it I suppose but I never have.



[Alexander1312]

Explosion charts seems helpful - I never thought this is the way it is meant to be put together. Definitely not a snug fit, rather loose but probably still tight enought.



[Srt4eric]

Do you have the top part just sitting on it. Maybe if you push the top part through the bottom?



[Srt4eric]

?



[Alexander1312]

Do you have the top part just sitting on it. Maybe if you push the top part through the bottom?

Thank you. Looks like this was meant to just to sit on it as @derek_SR mentioned. Pushing it through did not work. Really a bit odd how this was meant to be connected but seems to work well now.



[Srt4eric]

You can also try and dip the end of the hose in boiling water for a bit and stretch it over the larger barb.



[splitting_lanes]

Robert at Neptune was able to help me get the correct fitting barb for my varios 2.

Take the hose there, if all else fails



[Arvin R]

Thank you. Looks like this was meant to just to sit on it as @derek_SR mentioned. Pushing it through did not work. Really a bit odd how this was meant to be connected but seems to work well now.

I ended up gluing it in for my varios 2 when I had to do the same. I used PVC cement but I think Oatey All Purpose Cement would be more proper.
