Jestersix

BRS RODI leak + pressure gauge reading 0??

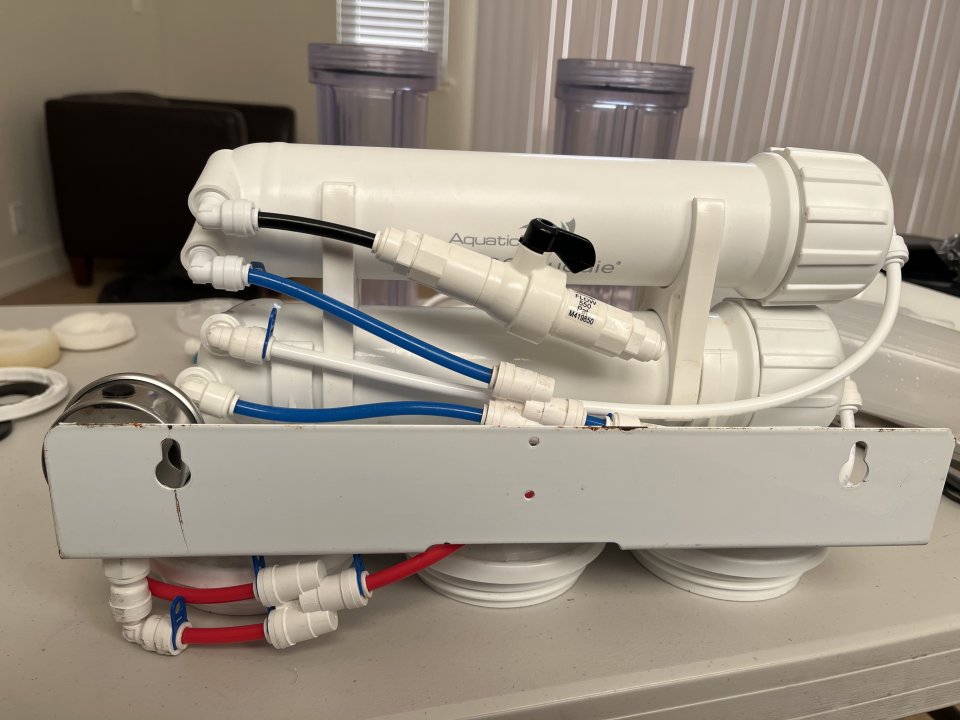

I have a picture of when I set up the system. Red tube is the output after sediment -> carbon -> carbon, which splits off into the pressure gauge and the other side goes into the membrane.




I don't think I have waste and product mixed: the product output is the center and the waste output is the one off to the side right?

I have both center ones (blue tubes) joined, and a white tube going from bottom canister waste to the top canister input

Regardless I think the meter might just be busted, which is pretty unfortunate
