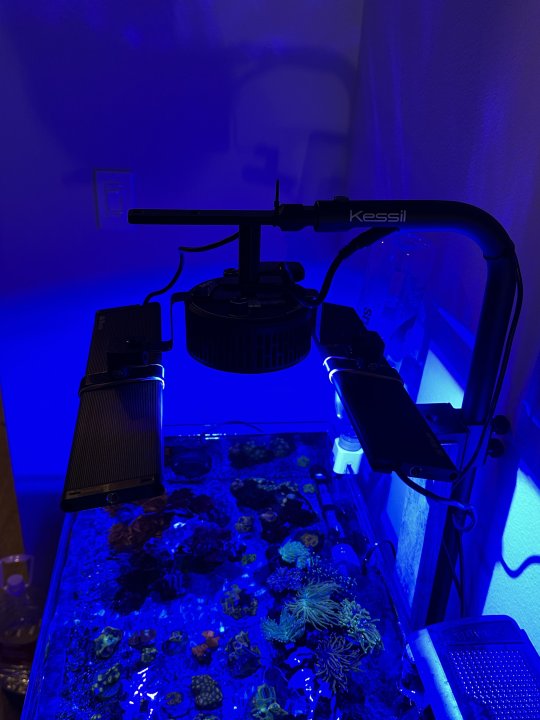

Mounting AI Blades to a Kessil 360xe; Calling all 3D printing gurus

[iani]

Thanks! Didn’t at all think about the heat element tbh. The light + blades itself wouldn’t weight very much, but the fact that the attachment would have to be pretty thin + the heat and then the weight on top of that, not sure if just any 3D printed material would work.

I have an idea to try to actually make this with a thin aluminum bar that I can cut to size, drill the necessary holes, and hopefully bend into shape. This bar that is 3/4” x 1/16” might work just right. That’s about the exact width and thickness needed. Cut this down to about 9”, drill the necessary holes, add the blade brackets at the ends and I think I could have something functional… I think.

https://www.lowes.com/pd/Steelworks-3-ft-x-0-75-in-Aluminum-Solid/3053641?store=1043&cm_mmc=shp-_-c-_-prd-_-hdw-_-ggl-_-CRP_SHP_LIA_HDW_Online_E-F-_-3053641-_-local-_-0-_-0&gad_source=1&gbraid=0AAAAAD2B2W_cCJDS9zCRYeG_8iTdvSEsk&gclid=EAIaIQobChMIj5mg9MnJiQMVSQRECB3dpTcSEAQYASABEgLDMfD_BwE&gclsrc=aw.ds

The question is why though? How will making it look nicer than something prefab? Is the prefab a lot bigger than what you need?



[B the Nano Reefer]

The question is why though? How will making it look nicer than something prefab? Is the prefab a lot bigger than what you need?

Don’t have the prefab on hand but seeing as it’s designed for the hydra not the Kessil, likely too large for what I need and predrilled holes probably won’t align.

Have you seen them mounted like this before? You seem very insistent on the pre fab lol



[iani]

Don’t have the prefab on hand but seeing as it’s designed for the hydra not the Kessil, likely too large for what I need and predrilled holes probably won’t align.

Have you seen them mounted like this before? You seem very insistent on the pre fab lol

No but if you do not know isn't this something to figure out first?



[B the Nano Reefer]

No but if you do not know isn't this something to figure out first?

Not necessarily
