UV Sterilizer

[scuzy]

What size pump is that do you need to dial it down to get proper use out of the uv?


Sent from my iPhone using Tapatalk Pro



[Squist]

The “proper flow rate” is up for debate. I was surprised to see a lot of discussion of BAR folks running much lower flow than what i read in Aqua UV’s manual (link below). Yet they had no issue, apparently.

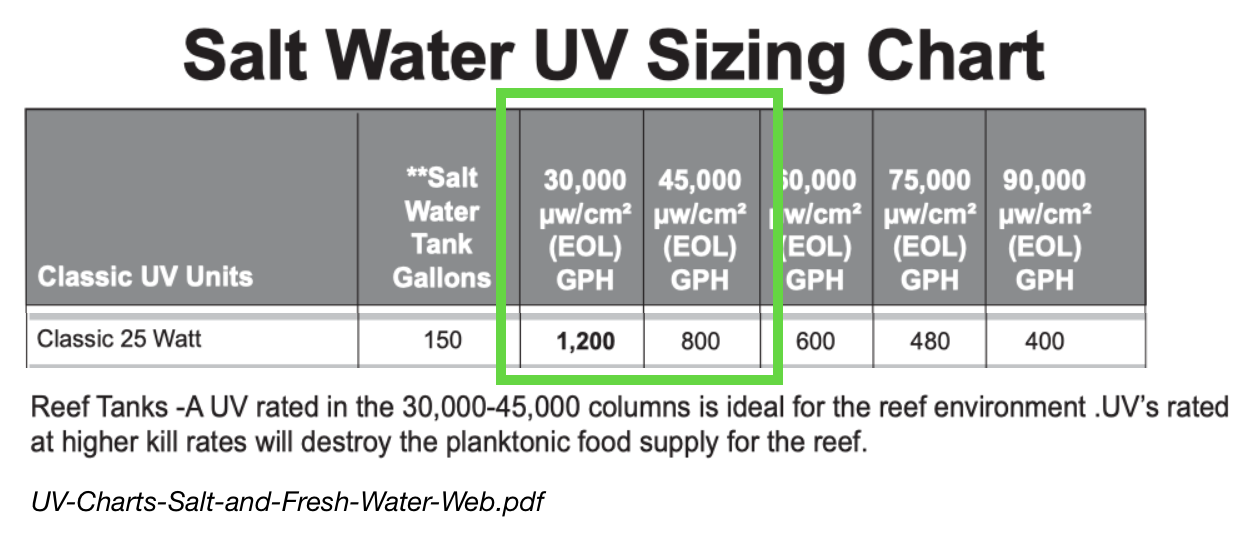

For my 25W I thought I needed to hit between 1200 and 800 gph.

(https://aquaultraviolet.com/wp-content/uploads/2019/06/UV-Charts-Salt-and-Fresh-Water-Web.pdf)

I picked up a 1,000 gph and it’s working at 500. I’m sticking with it and see no evidence of overdoing it.



[ashburn2k]

What if your pump dies and no water gets into the UV tube, won’t that cook your UV light?


Sent from my iPhone using Tapatalk Pro



[Squist]

Probably would burn out. but... odds.



[svreef]

Apex helps prevent that.



[Squist]

Apex helps prevent that.

ahh. true. IF FLOW = 0 then OFF. Syntax will need some scrubbing but hadn't thought of that.



[svreef]

It should be off whenever the pump is off - and the pump should have power usage protection by Apex as well. Also, I plumbed mine with the water inlets and outlets pointing slightly up, which means it’ll have some water in it even if the pump fails - to cool off the lamp until the Apex shuts it off



[Squist]

Thanks for the tip. Will need to sort thru how I have it set up.
