sfsuphysics
Supporting Member
Wow tank looks nice on the stand, hopefully the "no shoes in the house" rule was suspended while moving the tank and Matt wasn't moving the tank with socks on his feet on wood floors
Julius' CDA 150 Build
- Thread starter Julius Chen
- Start date
Julius Chen
Guest
Julius Chen
Guest

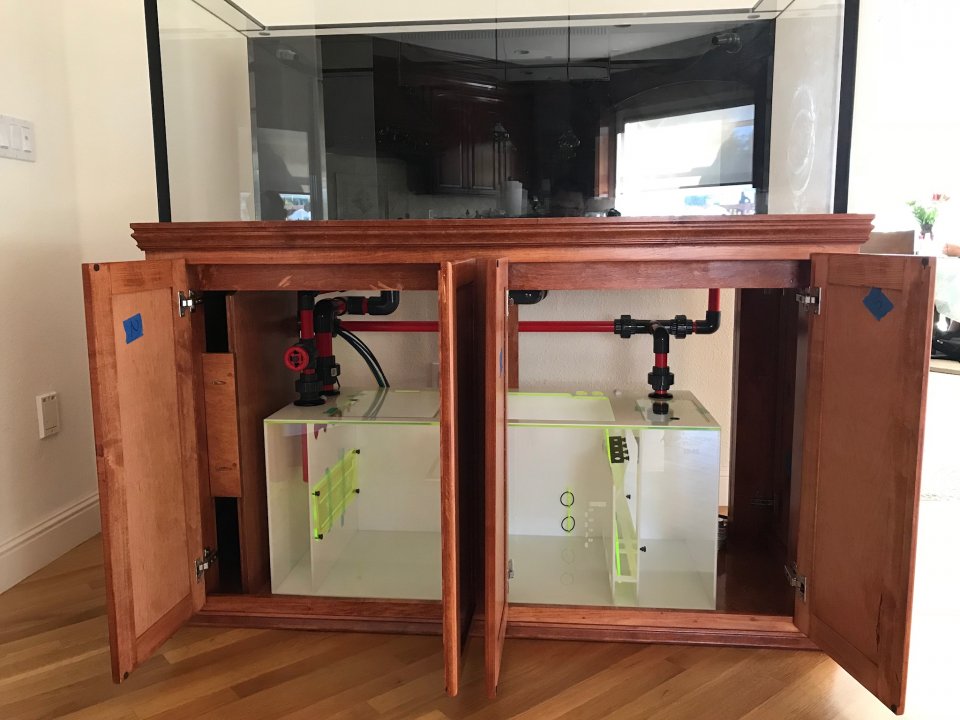

Put my old starboard in today.

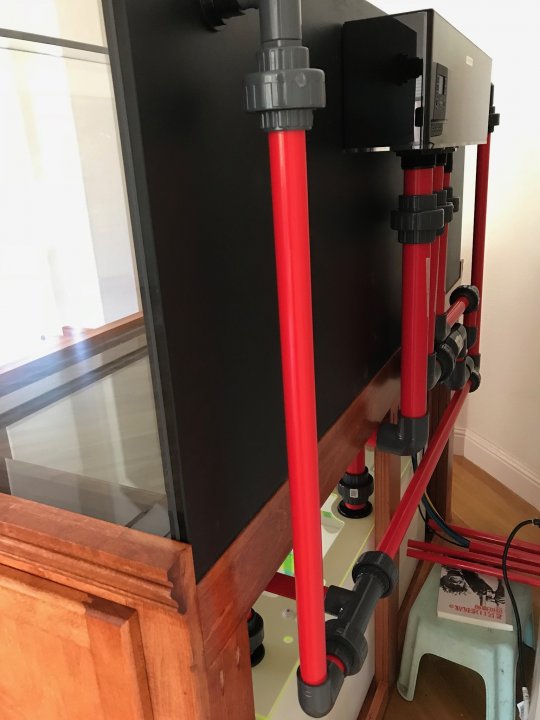

Do I only hand tighten those unions?

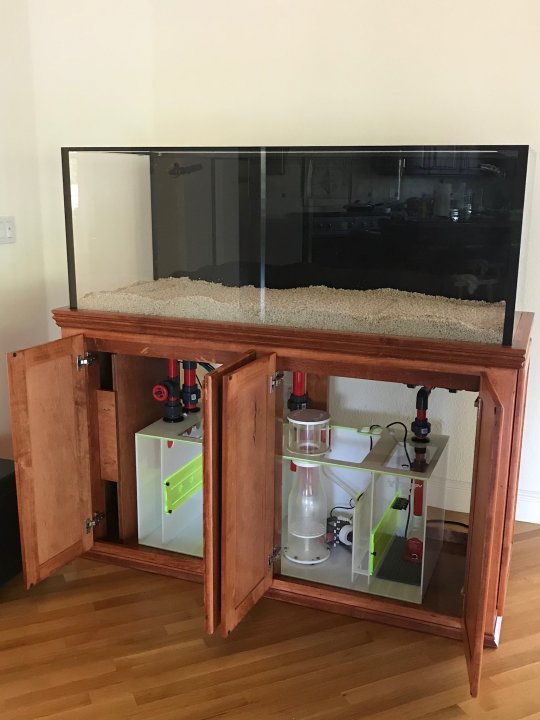

Plan to wash and put sand in tank next week!
Do I only hand tighten those unions?
Plan to wash and put sand in tank next week!
sfsuphysics
Supporting Member
Oh I saw the photo which is why I asked, can't imagine the possibility of slipping on wood floors in socks (I know from experience... slippery!) ... plus I saw the other photos shoes were on when tank was moving into the house
Julius Chen
Guest

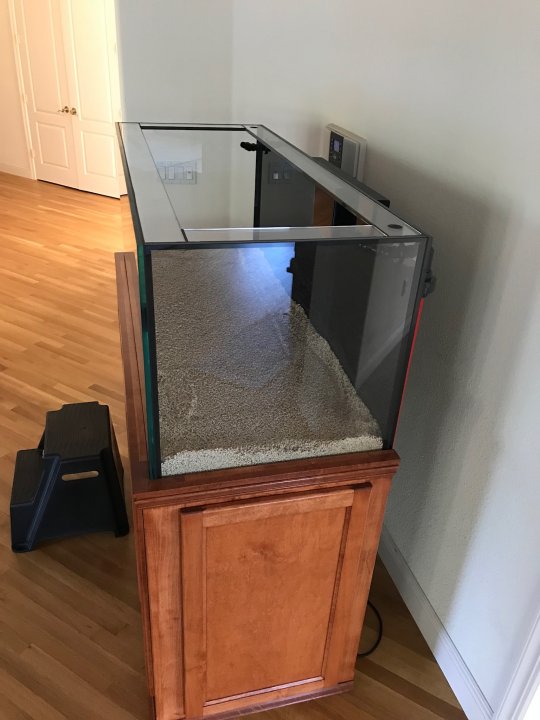

I realized I should have considered position the top eurobraced glass panes 1/2” lower so a DIY screen top can sit flush with side glass panels. Any suggestion how to make the top screen look clean?
Julius Chen
Guest
Those clips onto the top of the side panels, right?
My eurobraced tank is flat there, so the clips have no where to grab.
My eurobraced tank is flat there, so the clips have no where to grab.
Julius Chen
Guest
Gave it some thought, understand what Flagg37 meant now.... clips shaped like letter “h” lying on its back, right?

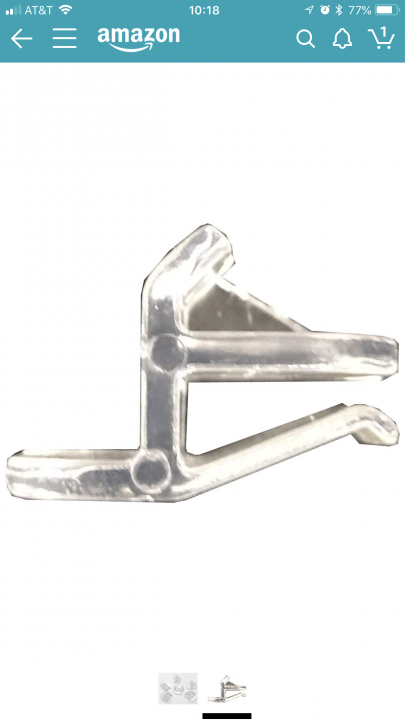

Like this one in photo but larger for my 1/2” glass. Have not found a source yet.
Like this one in photo but larger for my 1/2” glass. Have not found a source yet.
Last edited:
sfsuphysics
Supporting Member
Nelson, kind of silly thought... but have you looked for 3/4" clips?
NelsonCh
Guest
Yeah cant find them. Can you link me if you find a spot?
Sent from my iPhone using Tapatalk
sfsuphysics
Supporting Member

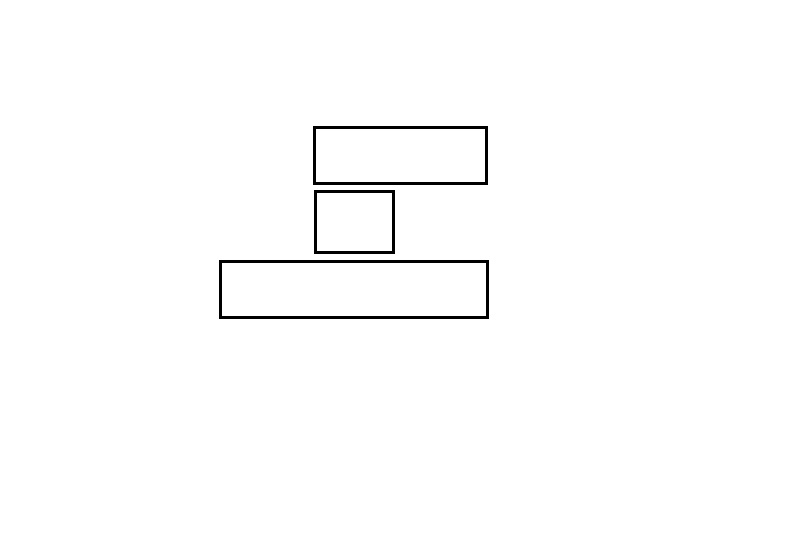

Without knowing the proper name can't find them, I've seen H-channels, but none that thick. But you could fabricate one fairly easy, get some 3/4"(19mm) acrylic, and just sandwich a smaller piece between larger piece and a longer piece, a little bit of weldon and it'll effectively make an h-clip, should be able to hold the weight of one of those tops no problem.
I attached a picture of what I mean, make it as long as you want and you can cut it up into smaller pieces to fit around your lid.
Attachments
Chromis
Supporting Member
The clips people normally get for screens work for non-euro braced tank, but if you build a screen with flanged frame corners that could work.
Julius Chen
Guest
How to build up the flange at corners of the screen top?
Flagg37
Guest
I’ve seen long plastic pieces that are for glass shower doors. It goes on the edge of the door so that when it closes it keeps the water in the shower. Shower doors are typically 3/8” or 1/2” so I know they make them for those sizes. Is your bracing 3/4” thick?
You could also use that clip you have shown and just attach it to the screen side and let it rest on the glass instead of the other way around.
Flagg37
Guest
Here’s what I was thinking. This particular one is for 3/8” glass so make sure to find the right size for your application.
CRL Polycarbonate "h" Jamb with Hard Leg for 180 Degree and 3/8" Glass - 98 in long https://www.amazon.com/dp/B001G12TZQ/ref=cm_sw_r_cp_api_HyfJBbJP7Y444
CRL Polycarbonate "h" Jamb with Hard Leg for 180 Degree and 3/8" Glass - 98 in long https://www.amazon.com/dp/B001G12TZQ/ref=cm_sw_r_cp_api_HyfJBbJP7Y444
Julius Chen
Guest
Found the corner flange from Chromis’ build a screen thread. Will give it a try.
https://www.swisco.com/Overlap-Scre...-Keys-for-5_16-inch-Thick-Screen-Frame/95-221
https://www.swisco.com/Overlap-Scre...-Keys-for-5_16-inch-Thick-Screen-Frame/95-221
Julius Chen
Guest

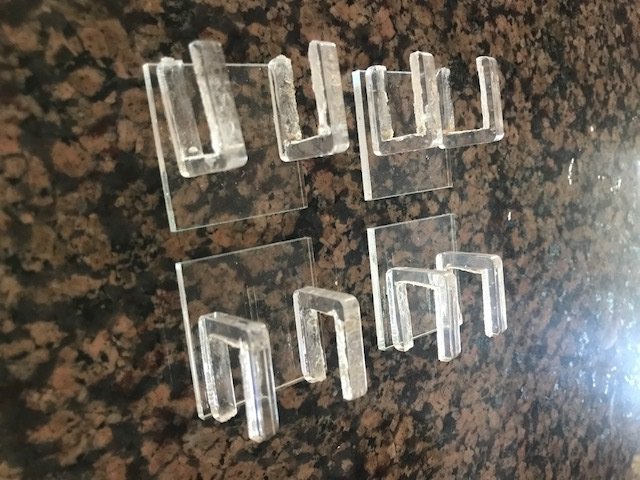

I built 4 of these, using $5 worth of parts from Tap Plastics
Last edited:
Julius Chen
Guest
The old AI Director got to be one of the worst controller to set up.
After numerous attempts, I finally make some progress and now am stuck at the following error message. This is when I tried to add a new device (i.e. this AI Director I own) in my account at https://my.aquaillumination.com
Any idea what I should do here?
The AI Director is hard wired into Netgear WNCE3001 (given to me for free by Bruce over a year ago). I have not connect the lights wirelessly to this AI Director yet.
Here is the error message:
"There are no Devices associated with this account.
A Director with serial number 02005DDC is not connected to MyAI. Connect your Director to MyAI and try again."
After numerous attempts, I finally make some progress and now am stuck at the following error message. This is when I tried to add a new device (i.e. this AI Director I own) in my account at https://my.aquaillumination.com
Any idea what I should do here?
The AI Director is hard wired into Netgear WNCE3001 (given to me for free by Bruce over a year ago). I have not connect the lights wirelessly to this AI Director yet.
Here is the error message:
"There are no Devices associated with this account.
A Director with serial number 02005DDC is not connected to MyAI. Connect your Director to MyAI and try again."
Julius Chen
Guest
Well, finally, I tried to unplug the ethernet wire, just let AI Director to operate in wireless mode. It finally allows me to add the new device in MyAI account.
The learning is when doing the initial setup end to end, do not use ethernet wired connection to home router. Wait until all is done, including the lights have all been discovered by AI and programed and functioning. Then MAYBE try the ethernet wired connection (for benefit of supposedly more stable connectivity over time).
The learning is when doing the initial setup end to end, do not use ethernet wired connection to home router. Wait until all is done, including the lights have all been discovered by AI and programed and functioning. Then MAYBE try the ethernet wired connection (for benefit of supposedly more stable connectivity over time).
