Jestersix

Chloramines...grrrrr

Vhuang168

Supporting Member
Apex has the 1/4” flow rate monitor. I wonder if it can be programmed to track volume. I know it has a minimum flow rate to function just like the stand alone meter but I don’t know what that rate is and if the ro system is too low.
You will have to do some math yourself.

Average flow rate x amount of time there is flow.


Sent from my iPhone using Tapatalk Pro


scuzy

Supporting Member
I tried the 1/4 flow meter and it was too slow to get a reading.


Sent from my iPhone using Tapatalk Pro


sfsuphysics

BOD
Staff member

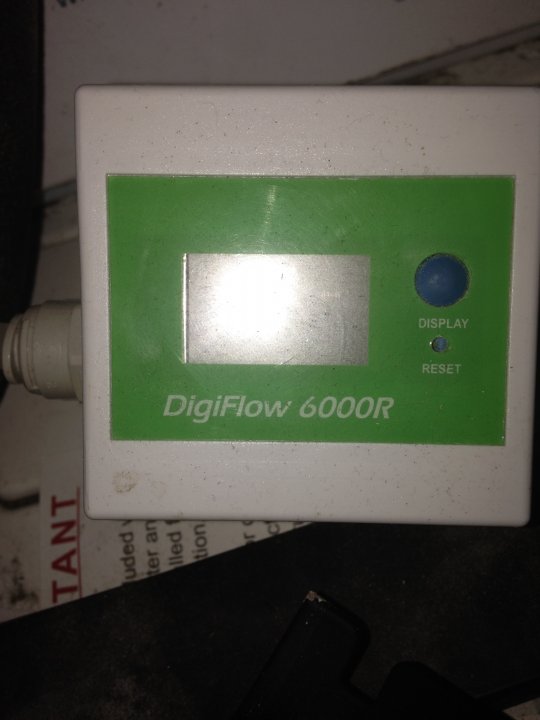

Just get the flow meter Mike mentioned... somewhere... the Apex is not an all powerful unit that can do everything great. In fact if you put too much reliance on it it might come back around to bite you in the ass.


Rostato

Supporting Member
Nice. I already have one of those for my filter under my kitchen sink. Maybe I’ll steal it


Rostato

Supporting Member
Well I decided to get the 3 stage di upgrade and replace all filters and membrane. Also added a second membrane and a booster pump.

I should be able to double the useful life of my filters and make water much faster now which is awesome.

Thanks again to everyone who helped. I definitely feel like I was headed down the rabbit hole.


Rostato

Supporting Member
I maybe went a bit overboard...rebuilt my entire system. Used a 4 place canister holder in reverse. It’s set up as follows

Stage 1...5 micron filter
Stage 2...1 micron filter
Stage 3...universal carbon block
Stage 4...universal carbon block

Then to the middle pressure gauge...this is to see when the pressure drops and filters need replacing

There is a tee after this with a ball valve so that 8 can test for chlorine after the carbon blocks (my house has 1ppm total chlorine currently)

Next is the booster pump tuned down to 80psi with the left pressure gauge...then
Stage 5 and 6 are 2 75gpd membranes in series

Dual TDS meter shows TDS in (my house is around 230ppm) and out after the membranes

The. Stage 7, 8, and 9 are the BRS 3 stage DI with triple TDS meter. Using the cation, anion and mixed beds.



sfsuphysics

BOD
Staff member
Just got a package from BRS last night around 9:30pm (yeah UPS is really grinding them hard) for my upcoming system which is also a 9 stage system just like yours! :D


rygh

Webmaster
Staff member
Just got a package from BRS last night around 9:30pm (yeah UPS is really grinding them hard) for my upcoming system which is also a 9 stage system just like yours! :D
Funny, I got a package way late last night also. (larger GFO reactor)


ashburn2k

Supporting Member
i always get packages right after I left for work.. makes me stare at my Ring all day and hope no one is stealing it.


sfsuphysics

BOD
Staff member
Well UPS did say at their site "End of Day" and complaining to my wife around 8pm and not getting a package I joked "watch the doorbell ring at 11:59pm" it was a bit earlier, but damn, I'm lucky my 2 nearly 3 year old doesn't go to bed early like 99.99% of other kids his age.


sfsuphysics

BOD
Staff member
Well talking with the guys for a minute, they mentioned they had to be back by like 10pm, and they were making time and a half, so yeah they're already being tipped.


Rostato

Supporting Member
So it’s only been a mont, and I’ve made less than 100G of product water with the new setup. Look how dirty the 5 micron filter is already...

Should I change it already. Seems crazy, but I’d rather replace the cheap filter and keep the carbon filters running as long as possible.

I also noticed that my tds from tap went from 260 up to 320 recently

Crazy right?


Rostato

Supporting Member
Neither are crazy. Sediment filters look dirty super fast. That doesn't mean they are full.
Ok. I. Just glad I have a pressure gauge before and after the filters. That should help see when they get clogged.

I sort of wish I had a gauge before filters and then one before the carbon blocks instead of after.


rygh

Webmaster
Staff member
Yes, not abnormal.

It is interesting how clean the 1 micron filter is. Seems that most sediment is fairly large.
I always wondered about that.

Want to see something "fun"
Turn off the house water main, drain the water out of pipes, then turn it back on.
It is amazing how much sediment will come out of your pipes as you turn on sinks and so on.
