Meshmez's IM EXT 112

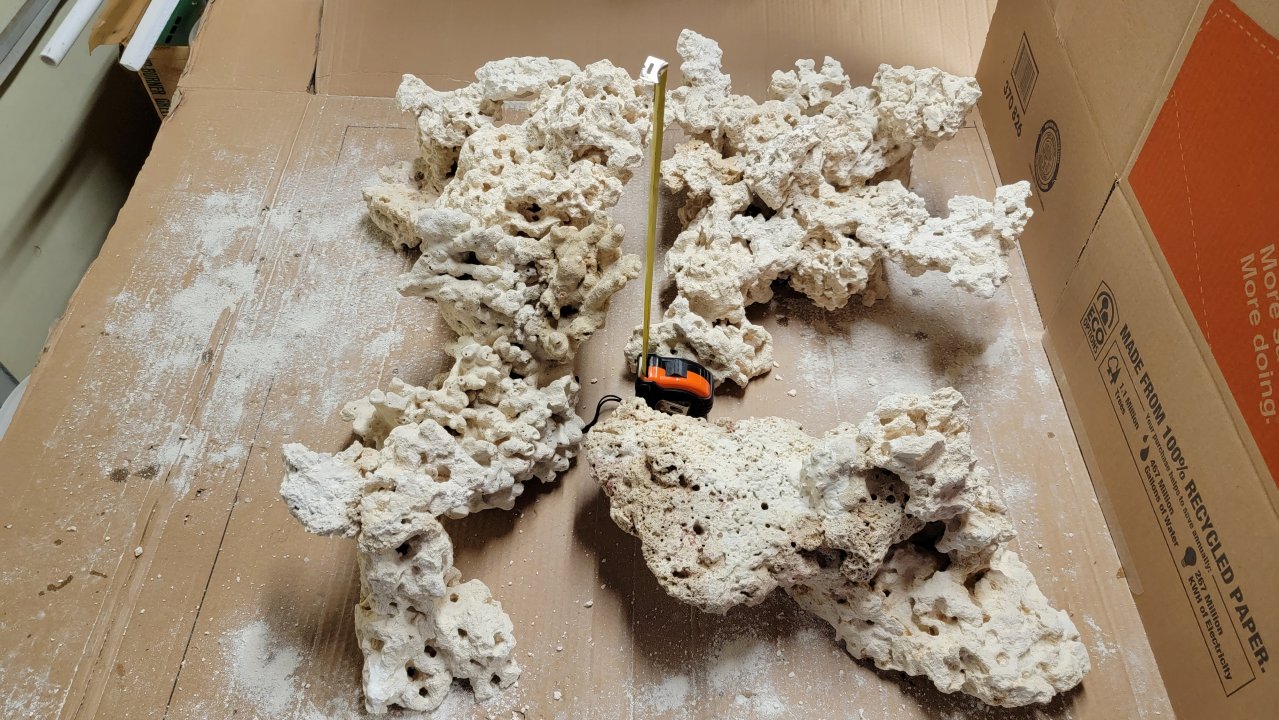

Ok I think my rockwork is finalized. It's really hard to show the depth in pics. Tape measure is set at water height.

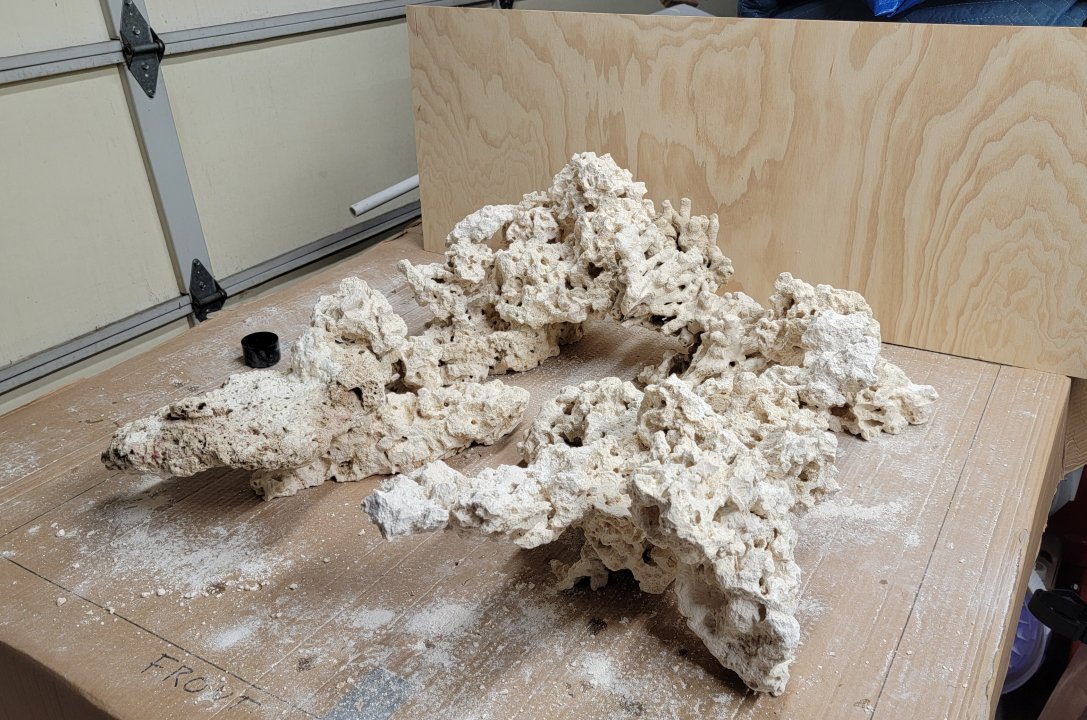

Left view:

Left front corner:


Front:


Right front corner:


Right side:


Top view:

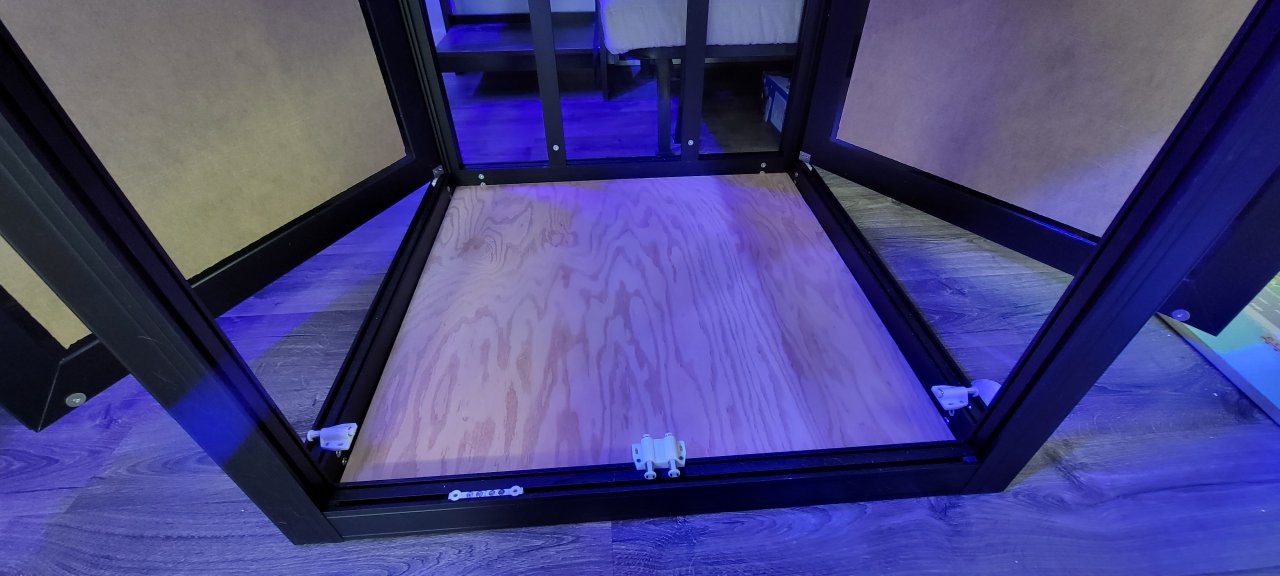

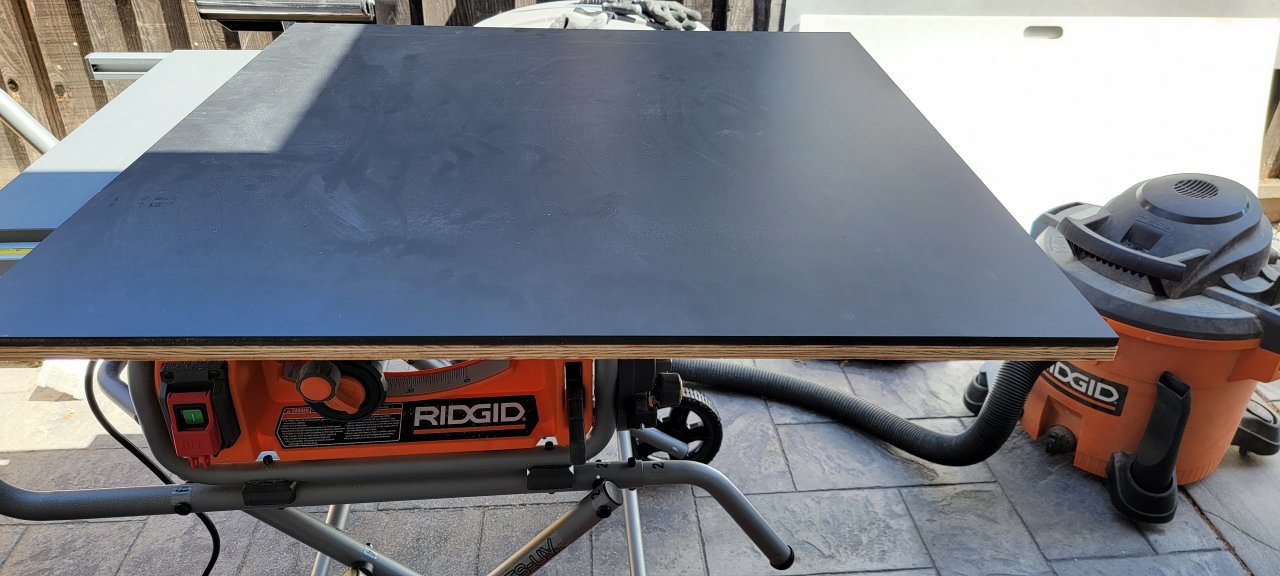

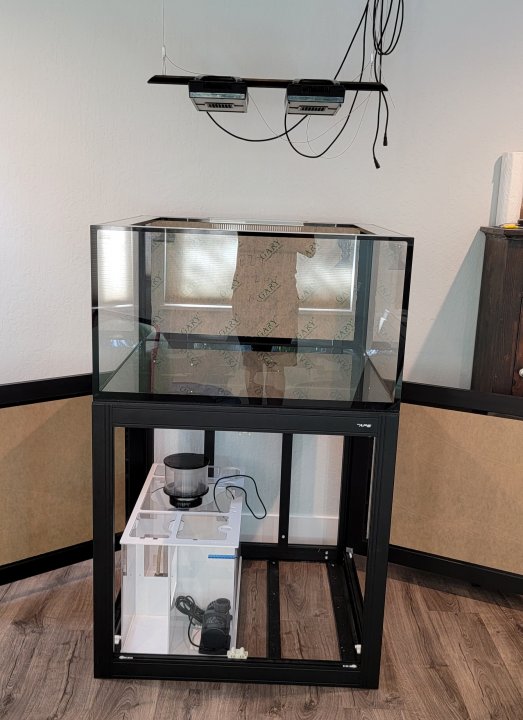

I have read about APS stands and the 5/16" foam PVC floors on the stands being too flexible to load with sump and such. I broke out the table saw that @xcaret found the great deal on, and cut a piece of 1/2" plywood to help support the PVC.

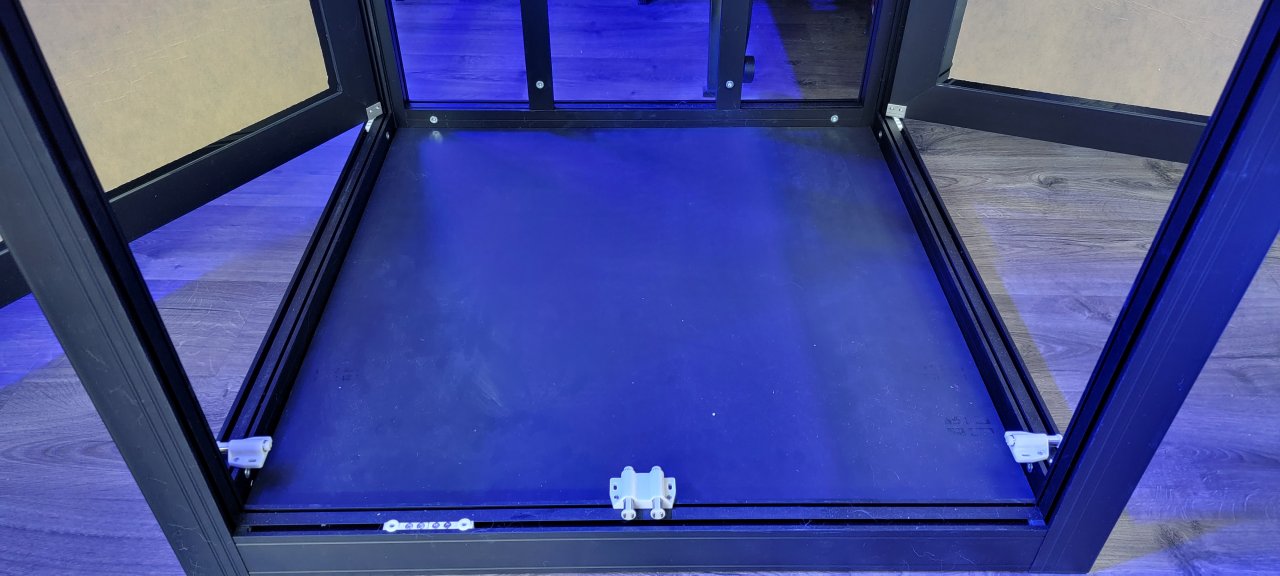

It makes the floor much less flexible.



Any ideas for making the floor of the stand a waterproof catch basin? Obviously the PVC is waterproof. Should I try to attach PVC sidewalls to it? Use some kind of tape to seal it to the bottom rails of the stand?

I would highly recommend some exterior grade spar urethane and completely coat the plywood with 3-4 coats worth. Doing this will be 100% worth it as the glue in most plywood is water based and will degrade the board severely if it gets wet and stays wet with small spills and drips.

This doesn't handle your waterproof tub concept but it will help long term. You could create a tub using starboard and seal the seams with silicone or a thick epoxy coating to create a homemade tub. If you were doing that then maybe ditch the foam board and plywood altogether.

For the tub, you can actually by PVC sheets and glue them just like pipe with PCV glue vs Starboard. It is common to see this material sold as Siding so at Home Depot etc it is precut into 6" boards for exterior siding/trim.

0.060" x 48" x 96" Gray PVC Type 1 Sheet at ePlastics

ePlastics sells 0.060
www.eplastics.com www.eplastics.com

PVC - Siding - The Home Depot

Get free shipping on qualified PVC Siding products or Buy Online Pick Up in Store today in the Building Materials Department.
www.homedepot.com


Nice scape/tank.

Last edited:
Da_Neefer said:
I would highly recommend some exterior grade spar urethane and completely coat the plywood with 3-4 coats worth. Doing this will be 100% worth it as the glue in most plywood is water based and will degrade the board severely if it gets wet and stays wet with small spills and drips.

This doesn't handle your waterproof tub concept but it will help long term. You could create a tub using starboard and seal the seams with silicone or a thick epoxy coating to create a homemade tub. If you were doing that then maybe ditch the foam board and plywood altogether.
Click to expand...
Thanks for the suggestions. I normally give plywood floors on my stands a thick coat of paint, and haven't had an issue with that. Since this one is sunk in, I figured I might be able to make it a waterproof tub.
Qwiv said:
For the tub, you can actually by PVC sheets and glue them just like pipe with PCV glue vs Starboard. It is common to see this material sold as Siding so at Home Depot etc it is precut into 6" boards for exterior siding/trim.

0.060" x 48" x 96" Gray PVC Type 1 Sheet at ePlastics

ePlastics sells 0.060
www.eplastics.com www.eplastics.com

PVC - Siding - The Home Depot

Get free shipping on qualified PVC Siding products or Buy Online Pick Up in Store today in the Building Materials Department.
www.homedepot.com


Nice scape/tank.
Click to expand...
Have you done this? I actually have some 1/4" sheet, and I have heard you can bond just like pipe, but I haven't ever tried to actually bond it.

Meshmez said:
I have read about APS stands and the 5/16" foam PVC floors on the stands being too flexible to load with sump and such. I broke out the table saw that @xcaret found the great deal on, and cut a piece of 1/2" plywood to help support the PVC.
View attachment 37406
It makes the floor much less flexible.
View attachment 37407
View attachment 37408

Any ideas for making the floor of the stand a waterproof catch basin? Obviously the PVC is waterproof. Should I try to attach PVC sidewalls to it? Use some kind of tape to seal it to the bottom rails of the stand?
Click to expand...
I made a “tub” out of PVC sheet from TAP Plastics; I believe it was 1/4”
It’s in the cube cabinet at Seven Stills; maybe @Tim Obert can snap a picture of it?

Meshmez said:
Did you just apply the PVC solvent to the edge of the vertical piece, press it down, and fixture it in place until it dries?
Click to expand...
yep, glue it just like pipe for the gluing part, but treat it like glueing carpentry as it can set up quick and doesn't self align like a plumbing fitting. Just make sure you get it in place, small jiggle and lock it where it goes and go a little heavy on the glue compared to pipe. Practice on 2 pieces of scrap so you know what to expect as it sets up fast.

Meshmez said:
Did you just apply the PVC solvent to the edge of the vertical piece, press it down, and fixture it in place until it dries?
Click to expand...

At first I had a hard time because I wanted it to be a perfect seam but gave up. Ran the brush along the edge with plenty of solvent/glue (gray); worked the bottom and opposite sides, then I bonded the other two pieces. Keeping them upright was the most challenging part but some full soda cans helped a lot along with masking tape.

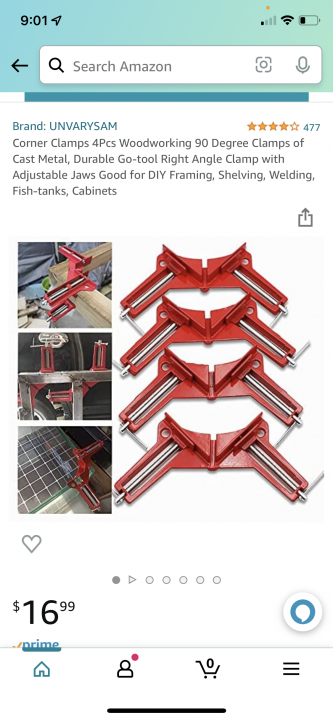

I’ve never done it, but couldn’t you use some 90 clamps like the ones below to set up the sides of the tub, put the glue on, and then just quickly place the bottom of the tub on the clamped sides?

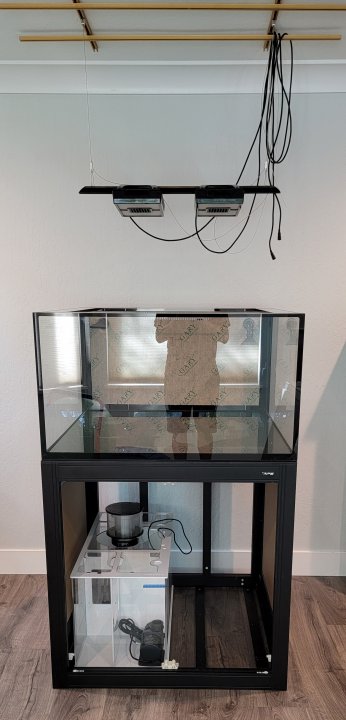

Decided to just use packing tape to "seal" the base of the stand. It's probably not the best option, but it was pretty easy, and I figure it will give me a little time for leak sensors to go off and catch it.

popper said:

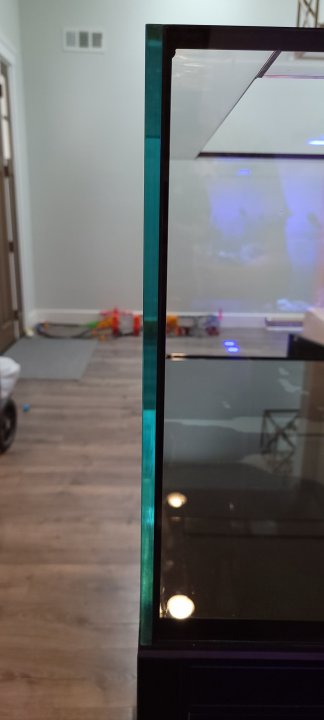

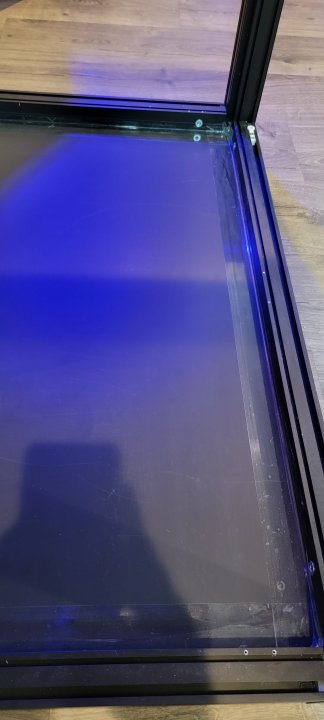

@Meshmez looking from the side view starfire, does your panel look blueish or greenish? my established old current IM 50g is more blue than my new IM 100ext.

This new 100ext looks like my previous new SCA 150. They claim it's starfire, but the panels aren't blueish, more greenish. I know SCA got the panels from China, maybe IM is starting to do that too to save cost and profit.
Click to expand...
@popper Its kinda hard to tell. It's definitely low iron, but maybe not as low as true starphire.
